F1370NBGI - Renesas Electronics

Description: The IDT F1370 is a highly linear complex IF digital pre-distortion (DPD) demodulator with built-in digital step attenuator (DSA) and single-pole-double-throw switches (SP2Ts).  It receives the signal coming out of the PA so that the I&Q data at Baseband can be pre-distorted before being sent to the Tx DAC to counteract the distortion inherent in the downstream PA.  The signal coupled from the PA is adjusted via a DSA to a lower level and then sub-sampled at an IF frequency of ~200 MHz which necessitates the

Download F1370NBGI Model

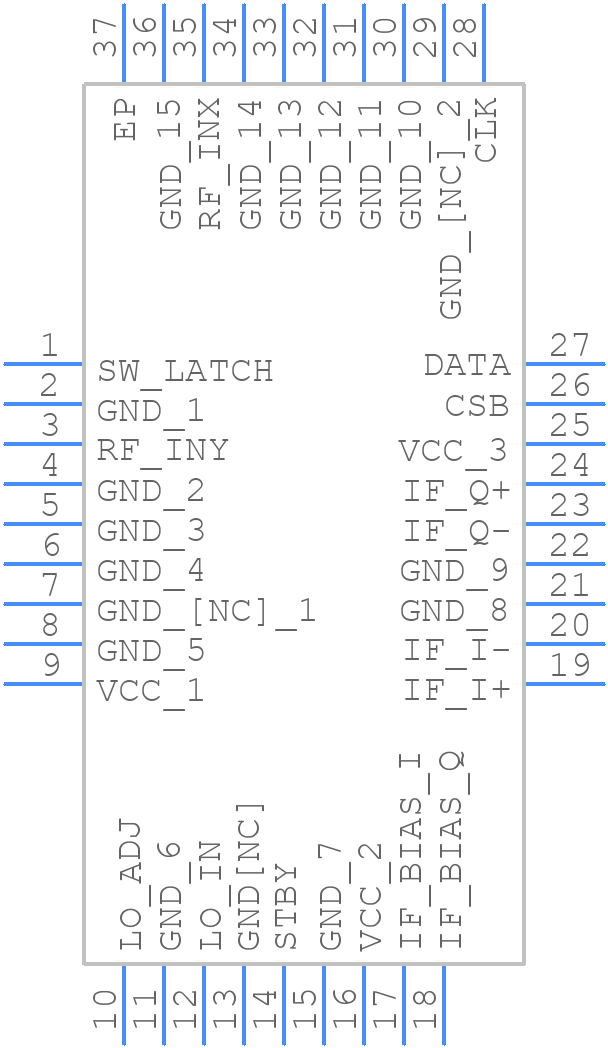

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
F1370NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG36P1__
click to zoom
3D Models
F1370NBGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NBG36P1__
click to zoom

F1370NBGI Details

  • Manufacturer Part Number:

    F1370NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Pin Count:

    36

  • Manufacturer Package Code:

    NBG36P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    36

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    325 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD
