Description:The IDT F1951 Digital-Step-Attenuator featuring Glitch-Free™ technology improves system reliability and settling time. It has an attenuation range of 31.5 dB with excellent accuracy and very low distortion.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The F1951NBGI has a built-in overcurrent protection feature, but it's not enabled by default. To implement overcurrent protection, you need to connect an external resistor to the OCP pin and configure the OCP threshold through the device's registers.
Although the datasheet specifies a maximum operating voltage of 3.6V, the device can tolerate up to 4.2V during power-up, but it's essential to ensure that the voltage does not exceed 3.6V during normal operation.
Renesas provides a troubleshooting guide for I2C interface issues in their application notes, which includes steps to check the I2C bus voltage, clock frequency, and slave address configuration. Additionally, using an I2C bus analyzer or logic analyzer can help identify issues with the I2C communication.
Renesas recommends using a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection IC to protect the F1951NBGI from electrostatic discharge. The recommended ESD protection devices are listed in the datasheet or application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F1951NBGI Overview

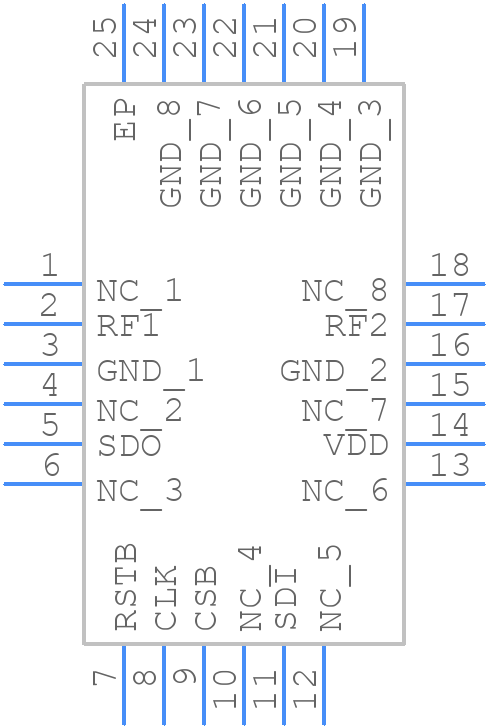

Use the download button to access the F1951NBGI schematic symbol, PCB footprint, and 3D model.
