F24-045-C2 footprint, schematic symbol and 3D model by Triad Magnetics

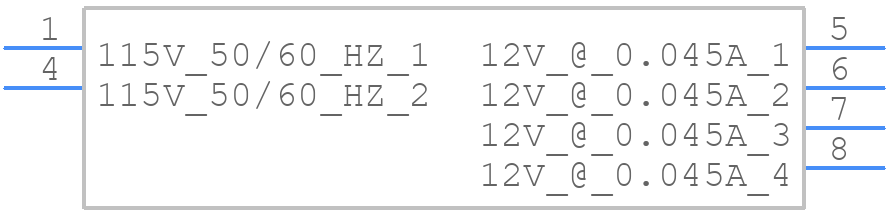

Symbol

click to zoom

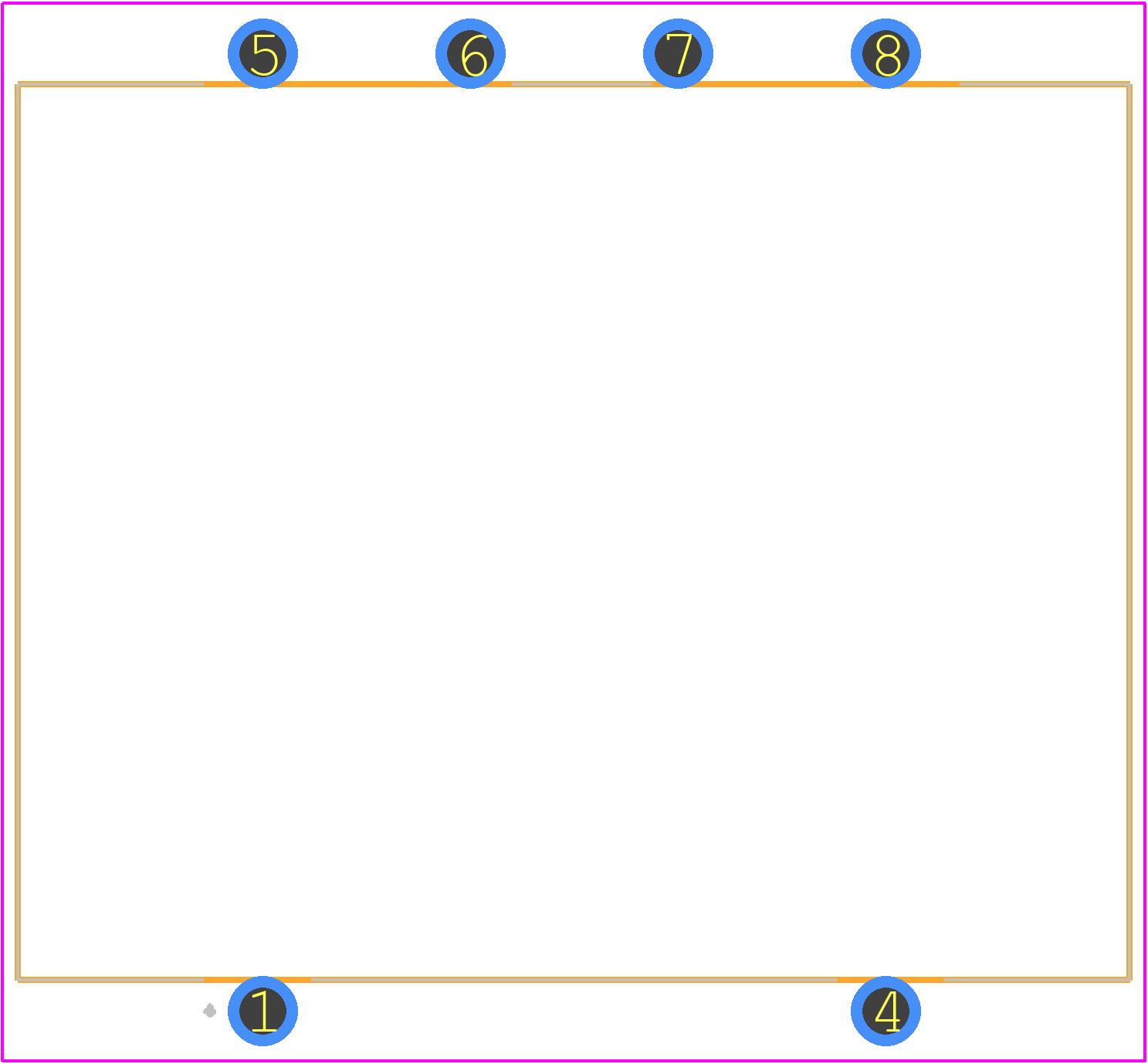

PCB Footprints

F24-045-C2 - Triad Magnetics PCB footprint - Other - Other - F24-045-C2-1

click to zoom

3D Models

F24-045-C2 - Triad Magnetics - 3D model - Other - F24-045-C2-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for F24-045-C2
Part Number F24-045-C2
Manufacturer Triad Magnetics
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - F24-045-C2-1
Released Date Oct 26, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

F24-045-C2 Details

Manufacturer Part Number:
F24-045-C2
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8504.31.40.35
Manufacturer:
Triad Magnetics
YTEOL:
5.83
Approvals:
CUL; UL
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
23.81 mm
Input Voltage-Nom:
115 V
Isolation Voltage:
1500 V
Length:
34.93 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Number of Secondary Winding:
2
Output Current 1:
0.09 A
Output Voltage 1:
12 V
Output Voltage 2:
12 V
Primary Rating:
SINGLE 115V
Surface Mount:
NO
Transformer Type:
SPLIT BOBBIN POWER TRANSFORMER
VA Rating:
1.1 VA
Width:
28.58 mm

F24-045-C2 Frequently Asked Questions (FAQs)

The recommended operating temperature range for F24-045-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
Yes, F24-045-C2 is designed to withstand high-vibration environments. It meets the vibration test requirements of MIL-STD-202, Method 201A.
Yes, F24-045-C2 is suitable for use in high-humidity environments. It meets the humidity test requirements of MIL-STD-202, Method 103B.
The maximum allowable DC current for F24-045-C2 is 1.5A. Exceeding this current may cause overheating and reduce the lifespan of the transformer.
Yes, F24-045-C2 is suitable for use in switching power supply applications. However, it's essential to ensure that the transformer is properly designed and tested to handle the high-frequency switching signals.

Trust Checks

Expert Contribution

System Verified

Community Approved

F24-045-C2 Overview

Use the download button to access the F24-045-C2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like F24-0, or try a keyword search, such as Power/Mains Transformers
