F24-500-C2 - Triad Magnetics

Description: Class 2/3 Transformer

Download F24-500-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

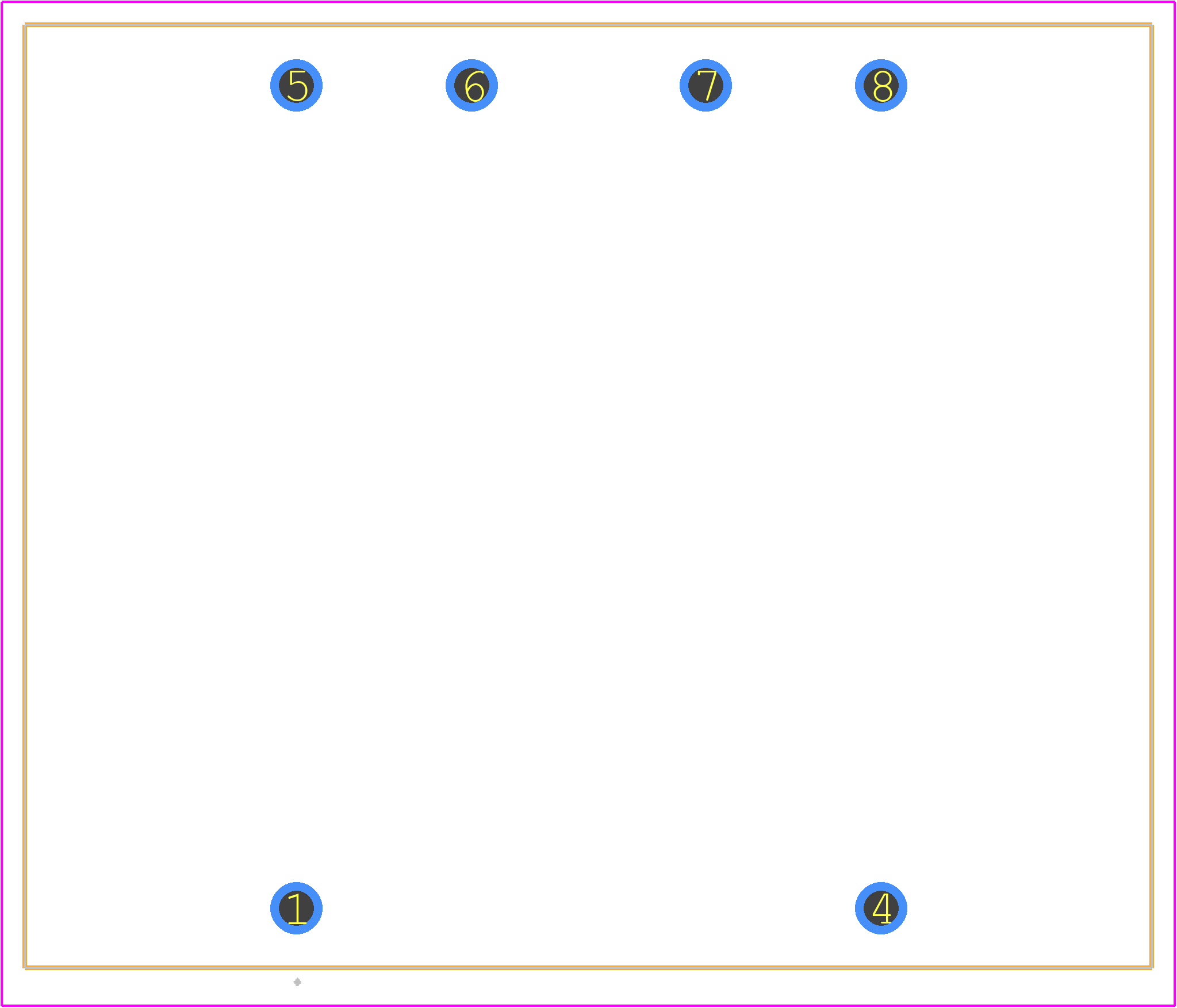

PCB Footprints
F24-500-C2 - Triad Magnetics PCB footprint - Other - Other - F24-500-C2-2
click to zoom
3D Models
F24-500-C2 - Triad Magnetics  - 3D model - Other - F24-500-C2-2
click to zoom

F24-500-C2 Details

  • Manufacturer Part Number:

    F24-500-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    36.51 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    47.63 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    12 VA

  • Width:

    39.69 mm

F24-500-C2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the F24-500-C2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the transformer is not operated above its maximum temperature rating of 130°C.
  • The maximum allowable voltage imbalance between the primary and secondary windings is 10% to ensure reliable operation and prevent overheating.
  • Yes, the F24-500-C2 can be used in a push-pull configuration, but it requires careful design and layout to ensure that the transformer is properly biased and that the windings are properly connected.
  • The recommended creepage distance for the F24-500-C2 is 4.5 mm to ensure that the transformer meets safety standards and regulations.
