F28-200 - Triad Magnetics

Description: Power Transformers POWER XFMR 28.0Vct@0.200A UL/cUL 115V SPLIT PACK PCB MOUNT/F28-200

Download F28-200 Model

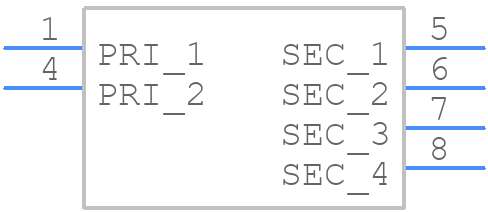

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

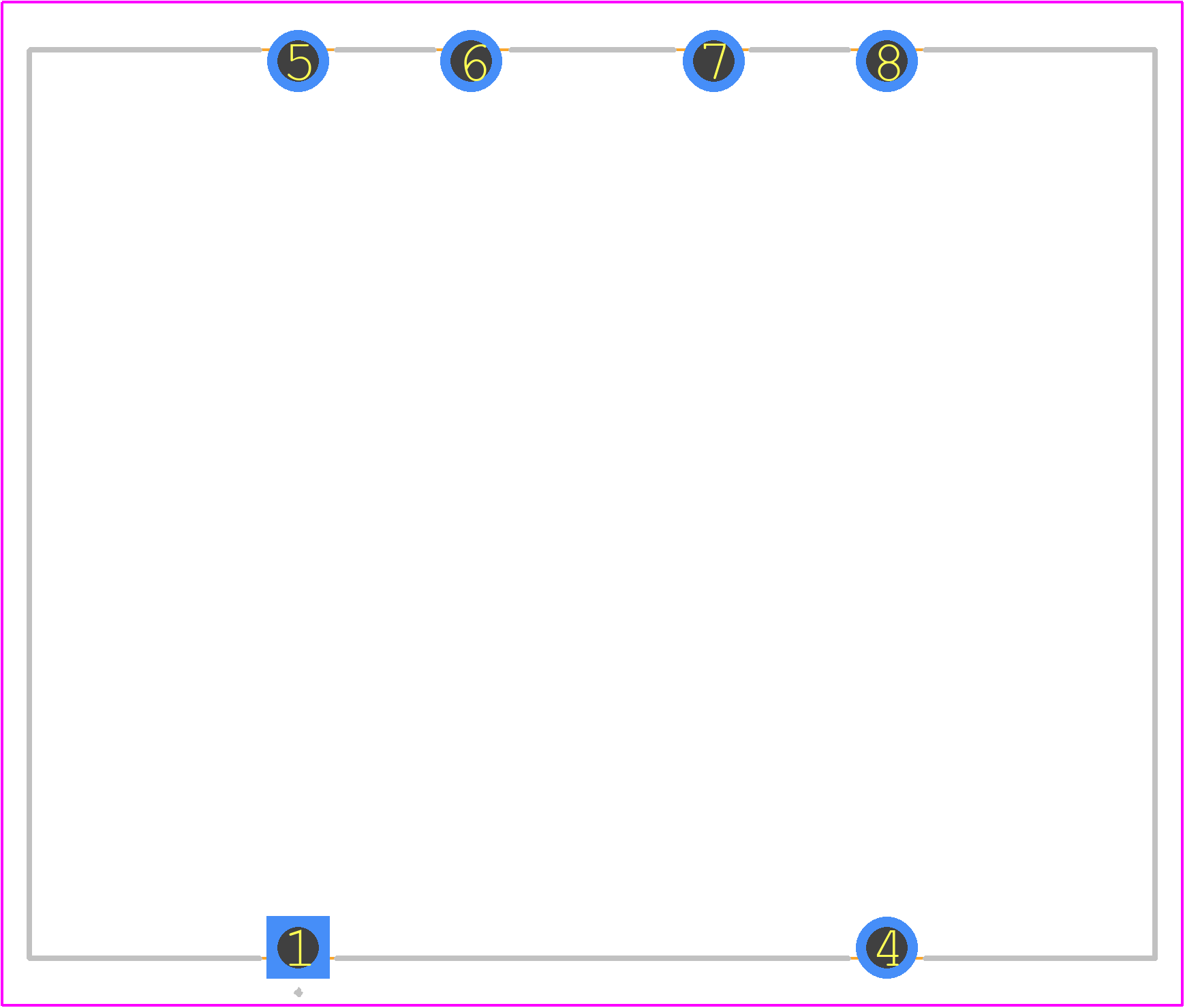

F28-200 - Triad Magnetics PCB footprint - Other - Other - F28-200-2
click to zoom
3D Models
F28-200 - Triad Magnetics  - 3D model - Other - F28-200-2
click to zoom

F28-200 Details

  • Manufacturer Part Number:

    F28-200

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    33.34 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.4 A

  • Output Voltage 1:

    14 V

  • Output Voltage 2:

    14 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.34 mm

F28-200 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for F28-200 is -40°C to +85°C.
  • While the F28-200 is suitable for high-frequency applications, its performance may degrade above 100 kHz. For high-frequency applications above 100 kHz, it's recommended to consult with Triad Magnetics application engineer or consider alternative products.
  • The maximum allowable DC current for the F28-200 is 2.5A. Exceeding this current may lead to overheating and reduced lifespan.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and keeping the ambient temperature within the recommended range. Consult with Triad Magnetics application engineer for specific guidance.
  • Yes, it's recommended to follow good PCB layout practices, such as keeping the transformer away from high-current paths, using a solid ground plane, and minimizing the loop area of the transformer connections.
