Texas Instruments provides a recommended PCB layout guide in the F28002x datasheet, which includes guidelines for power supply decoupling, analog signal routing, and digital signal routing. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and EMI.
The F280023PTQR has an internal oscillator that can be configured using the SYSCLK register. To achieve optimal clock performance, set the SYSCLK register to use the internal oscillator as the clock source, and adjust the PLL settings to achieve the desired clock frequency. Refer to the device's technical reference manual for detailed configuration guidelines.
The F280023PTQR's ADC conversion rate is limited by the sampling rate and the number of channels being converted. To optimize the ADC conversion rate, use the ADC's burst mode, which allows for faster conversion rates. Additionally, consider using the ADC's internal sample-and-hold circuitry to reduce the impact of input signal noise.
The F280023PTQR has a built-in watchdog timer that can be enabled and configured using the WDTCTL register. To implement watchdog timer functionality, set the WDTCTL register to enable the watchdog timer, and configure the watchdog timer period and timeout settings according to your application's requirements.
The F280023PTQR has several power-saving modes, including IDLE, STANDBY, and HALT modes. To use these modes, configure the device's power mode using the PWRCTL register, and adjust the clock frequency and peripheral settings to minimize power consumption. Refer to the device's technical reference manual for detailed guidelines on using power-saving modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F280023PTQR Overview

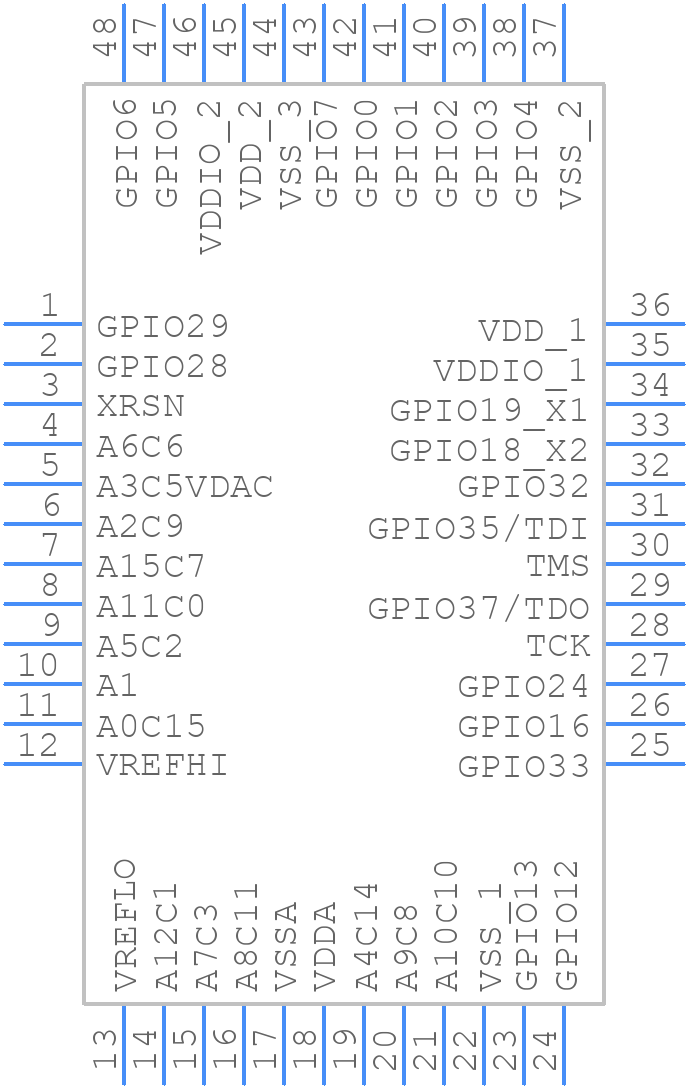

Use the download button to access the F280023PTQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F2800,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
