Texas Instruments provides a recommended PCB layout guide in the F28002x datasheet, which includes guidelines for power supply decoupling, analog signal routing, and digital signal routing. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and EMI.
The F280025CPTSR has a complex clock system. To configure it optimally, refer to the 'Clock System' section in the datasheet. Set the clock source to the internal oscillator or an external clock source, and configure the PLL (Phase-Locked Loop) to generate the desired clock frequency. Also, ensure that the clock frequency is within the recommended range for the specific application.
The F280025CPTSR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure that the device operates within the recommended temperature range for optimal performance and reliability.
The F280025CPTSR has a built-in ADC calibration feature. To implement ADC calibration, follow the steps outlined in the datasheet: 1) Initialize the ADC, 2) Perform a self-calibration, and 3) Store the calibration values in the device's flash memory. This ensures optimal ADC accuracy and performance.
The F280025CPTSR has several power-saving modes, including Idle, Sleep, and Shutdown modes. These modes can be configured using the device's power management registers. The Idle mode reduces power consumption by stopping the CPU clock, while the Sleep mode reduces power consumption further by stopping the system clock. The Shutdown mode turns off the device's power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F280025CPTSR Overview

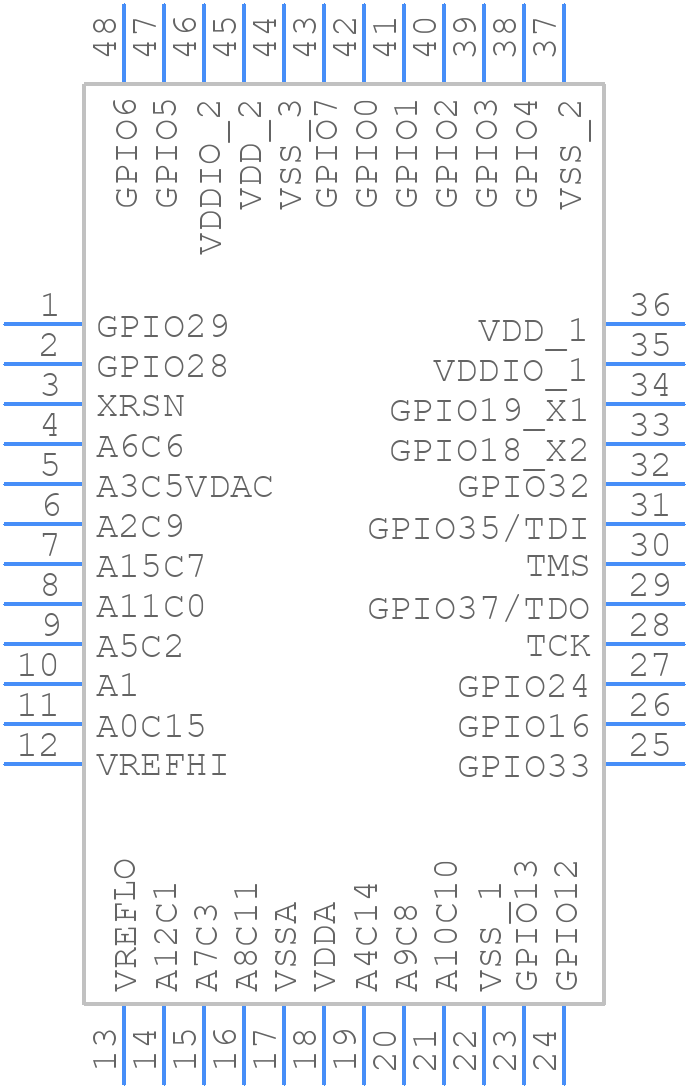

Use the download button to access the F280025CPTSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F2800,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
