F28388SZWTSR - Texas Instruments

Description: 32-bit Microcontrollers - MCU C2000 32-bit MCU w/ connectivity manager, 1x C28x+CLA CPU, 1.0-MB flash, FPU64, CLB, ENET, EtherCAT 337-NFBGA -40 to 125

Download F28388SZWTSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F28388SZWTSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

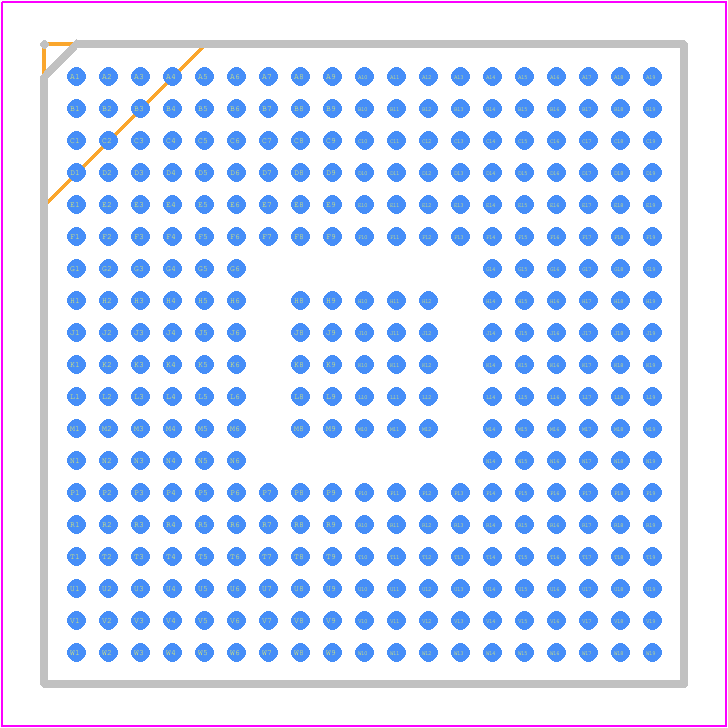

F28388SZWTSR - Texas Instruments PCB footprint - BGA - BGA - ZWT (S-PBGA-N337)
click to zoom
3D Models
F28388SZWTSR - Texas Instruments - 3D model - BGA - ZWT (S-PBGA-N337)
click to zoom

F28388SZWTSR Details

  • Manufacturer Part Number:

    F28388SZWTSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2019-05-31

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Address Bus Width:

    13

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    100 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PBGA-B337

  • JESD-609 Code:

    e1

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    6

  • Number of I/O Lines:

    169

  • Number of Terminals:

    337

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    283648

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.4 mm

  • Speed:

    200 MHz

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

F28388SZWTSR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the F28388SZWTSR is -40°C to 125°C (TJ). However, it's recommended to operate within -40°C to 105°C (TA) for optimal performance and reliability.
  • The clock system on the F28388SZWTSR can be configured using the Clock and Reset (CLKRST) module. You can use the CLKRST registers to select the clock source, configure the clock frequency, and enable/disable clock domains. Refer to the device's technical reference manual for detailed information.
  • The maximum frequency of the PWM outputs on the F28388SZWTSR depends on the specific PWM module and the clock frequency. Generally, the maximum PWM frequency is around 100 MHz, but it can be limited by the clock frequency and the PWM resolution. Refer to the device's technical reference manual for specific details.
  • The F28388SZWTSR has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT registers. You can set the watchdog timer period, enable/disable the watchdog timer, and configure the watchdog timer reset behavior using the WDT registers. Refer to the device's technical reference manual for detailed information.
  • The F28388SZWTSR has 1MB of flash memory, but not all of it is available for program storage. The amount of flash memory available for program storage depends on the specific device configuration and the amount of memory reserved for other purposes such as bootloaders and calibration data. Typically, around 900KB of flash memory is available for program storage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F28388SZWTSR Overview

Use the download button to access the F28388SZWTSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F2838, or try a keyword search, such as Microcontrollers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
