F2910NBGP - Renesas Electronics

Description: The F2910 is a rugged, low insertion loss, 50 Ω SPST absorptive RF switch designed for a multitude of wireless and other RF applications.  This device covers a broad frequency range from 30 MHz to 8000 MHz.  In addition to providing low insertion loss, the F2910 also delivers excellent linearity and isolation performance while providing a 50 Ω termination to the RF2 port when isolated.  This product also incorporates IDT’s new Constant Impedance, Kz, feature. The Kz feature maintains a near constant impedan

Download F2910NBGP Model

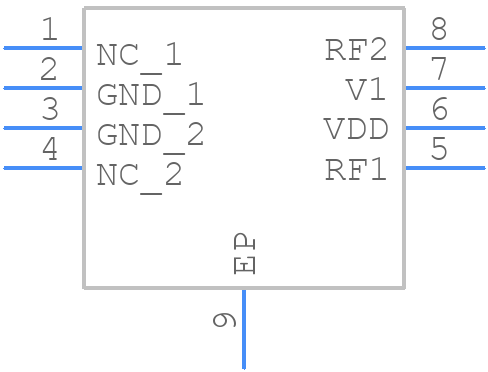

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
F2910NBGP - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - NBG8P3
click to zoom
3D Models
F2910NBGP - Renesas Electronics  - 3D model - Small Outline No-lead - NBG8P3
click to zoom

F2910NBGP Details

  • Manufacturer Part Number:

    F2910NBGP

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    8

  • Manufacturer Package Code:

    NBG8P3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-09-09

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • 1dB Compression Point:

    34 dBm

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION, HIGH RELIABILITY

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    30 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    265 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SPST

  • Supply Current-Max:

    0.374 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • VSWR-Max:

    3.3

F2910NBGP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the F2910NBGP is -40°C to 125°C.
  • To configure the F2910NBGP for low-power mode, set the PWRDN pin high and ensure that the VCC pin is connected to a power source. Additionally, reduce the clock frequency and disable unnecessary peripherals to minimize power consumption.
  • The maximum clock frequency supported by the F2910NBGP is 100 MHz.
  • To implement a watchdog timer on the F2910NBGP, use the built-in watchdog timer (WDT) module. Configure the WDT clock source, timeout period, and reset type according to your application requirements.
  • Yes, the F2910NBGP can be used with an external crystal oscillator. Connect the crystal oscillator to the XTAL1 and XTAL2 pins, and configure the clock source to use the external oscillator.
