F2910NBGP8 - Renesas Electronics

Description: The F2910 is a rugged, low insertion loss, 50 Ω SPST absorptive RF switch designed for a multitude of wireless and other RF applications.  This device covers a broad frequency range from 30 MHz to 8000 MHz.  In addition to providing low insertion loss, the F2910 also delivers excellent linearity and isolation performance while providing a 50 Ω termination to the RF2 port when isolated.  This product also incorporates IDT’s new Constant Impedance, Kz, feature. The Kz feature maintains a near constant impedan

Download F2910NBGP8 Model

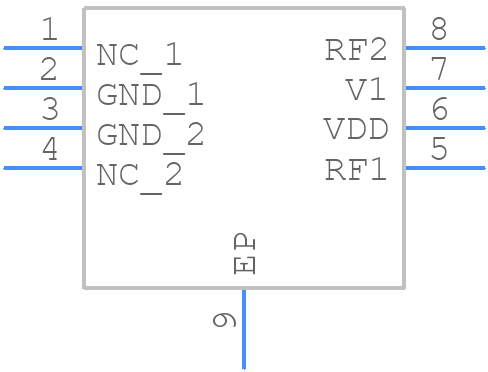

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
F2910NBGP8 - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - NBG8P3-1
click to zoom
3D Models
F2910NBGP8 - Renesas Electronics  - 3D model - Small Outline No-lead - NBG8P3-1
click to zoom

F2910NBGP8 Details

  • Manufacturer Part Number:

    F2910NBGP8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    8

  • Manufacturer Package Code:

    NBG8P3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-09-09

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • 1dB Compression Point:

    34 dBm

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION, HIGH RELIABILITY

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    30 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    265 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SPST

  • Supply Current-Max:

    0.374 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • VSWR-Max:

    3.3

F2910NBGP8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for F2910NBGP8 is -40°C to 125°C.
  • The POR sequence for F2910NBGP8 involves applying power to VCC, then VCCIO, and finally releasing the reset signal (RST).
  • The maximum clock frequency supported by F2910NBGP8 is 200 MHz.
  • The I/O pins on F2910NBGP8 can be configured using the Pin Configuration Register (PCR) and the Pin Multiplexing Register (PMR).
  • The VCCIO pin on F2910NBGP8 is used to power the I/O buffers and should be connected to a 1.8V power supply.
