F36-65 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, 2.5 V A, 18/36VDC (Nominal Secondary) Output, 36VDC CT at 0.065A Secondary in Series, 18VDC at 0.13A Secondary in Parallel, 6Pin

Download F36-65 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F36-65 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

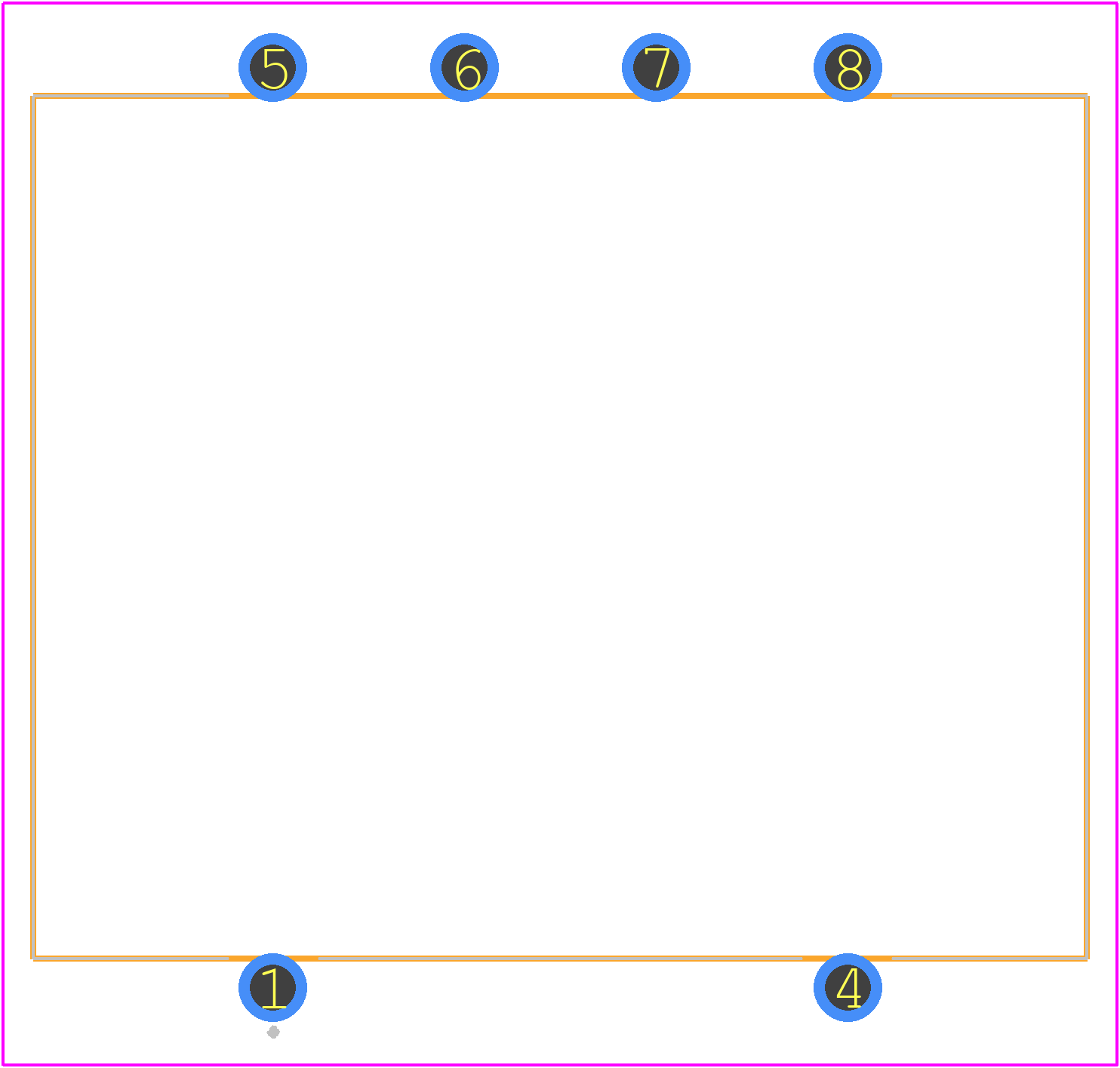

F36-65 - Triad Magnetics PCB footprint - Other - Other - F36-65
click to zoom
3D Models
F36-65 - Triad Magnetics - 3D model - Other - F36-65
click to zoom

F36-65 Details

  • Manufacturer Part Number:

    F36-65

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.13 A

  • Output Voltage 1:

    18 V

  • Output Voltage 2:

    18 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    28.58 mm

F36-65 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the F36-65 is 50-400 Hz, although it can be used at higher frequencies with reduced performance.
  • Yes, the F36-65 can be used in switching power supply applications, but it's essential to ensure that the transformer is designed to handle the high-frequency switching and voltage stresses.
  • The maximum ambient temperature rating for the F36-65 is 130°C, with a maximum temperature rise of 60°C above ambient.
  • While the F36-65 is a high-quality transformer, it may not meet the specific requirements for high-reliability or military applications. Triad Magnetics offers other products that are specifically designed for these applications, such as the TX product line.
  • Yes, Triad Magnetics offers customization options for the F36-65, including different winding configurations, insulation systems, and termination styles. Contact Triad Magnetics for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F36-65 Overview

Use the download button to access the F36-65 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F36-6, or try a keyword search, such as Power/Mains Transformers
