F48-023-C2 - Triad Magnetics

Description: Power Transformers 115V 50/60Hz 24V/48V 23/46mA , 1.1VA , 155°C

Download F48-023-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

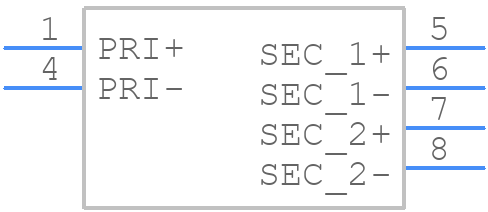

Symbol
F48-023-C2 - Triad Magnetics - PCB symbol
click to zoom

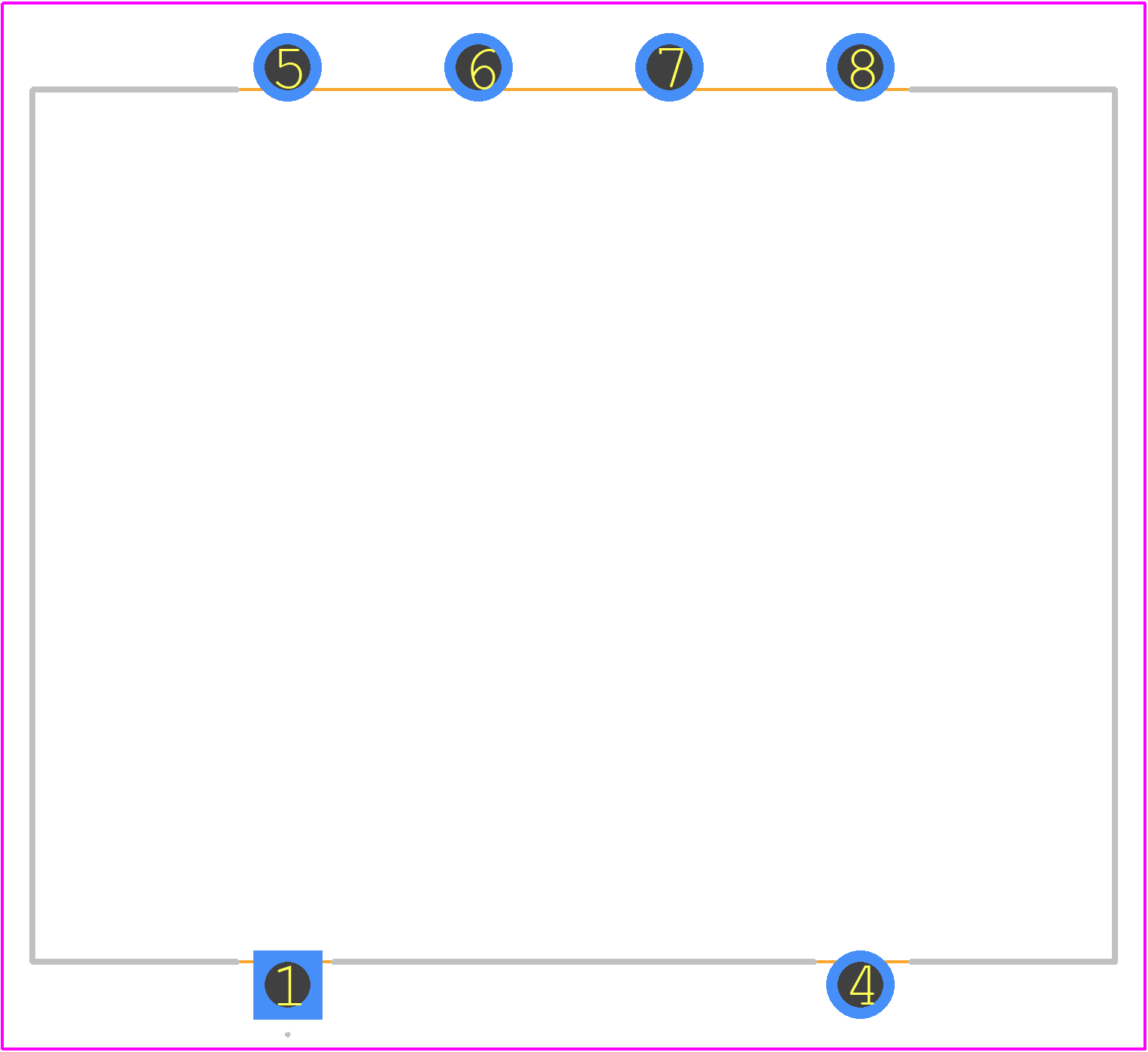

PCB Footprints
F48-023-C2 - Triad Magnetics PCB footprint - Other - Other - F48-023-C2-1
click to zoom
3D Models
F48-023-C2 - Triad Magnetics - 3D model - Other - F48-023-C2-1
click to zoom

F48-023-C2 Details

  • Manufacturer Part Number:

    F48-023-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    23.81 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.046 A

  • Output Voltage 1:

    24 V

  • Output Voltage 2:

    24 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    1.1 VA

  • Width:

    28.58 mm

F48-023-C2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for F48-023-C2 is -40°C to 85°C, although it can withstand storage temperatures up to 125°C.
  • Yes, F48-023-C2 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, F48-023-C2 is designed to operate in humid environments, with a humidity rating of 95% RH at 40°C.
  • Triad Magnetics recommends a minimum PCB spacing of 0.25 inches (6.4 mm) between the transformer and other components, and a minimum of 0.1 inches (2.5 mm) between the transformer and the PCB edge.
  • Yes, F48-023-C2 is designed to meet the requirements for use in Class I, Division 2 hazardous locations, but it's essential to follow proper installation and wiring practices.
