F50 - XP POWER

Description: High Voltage - Isolated Module DC DC Converter 1 Output 5000V 2mA 0.7V - 15V Input

Download F50 Model

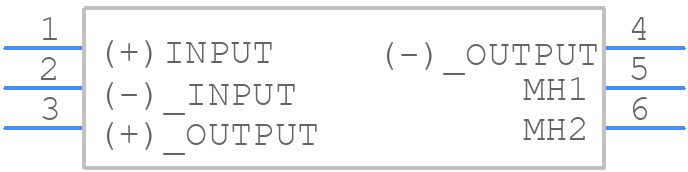

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

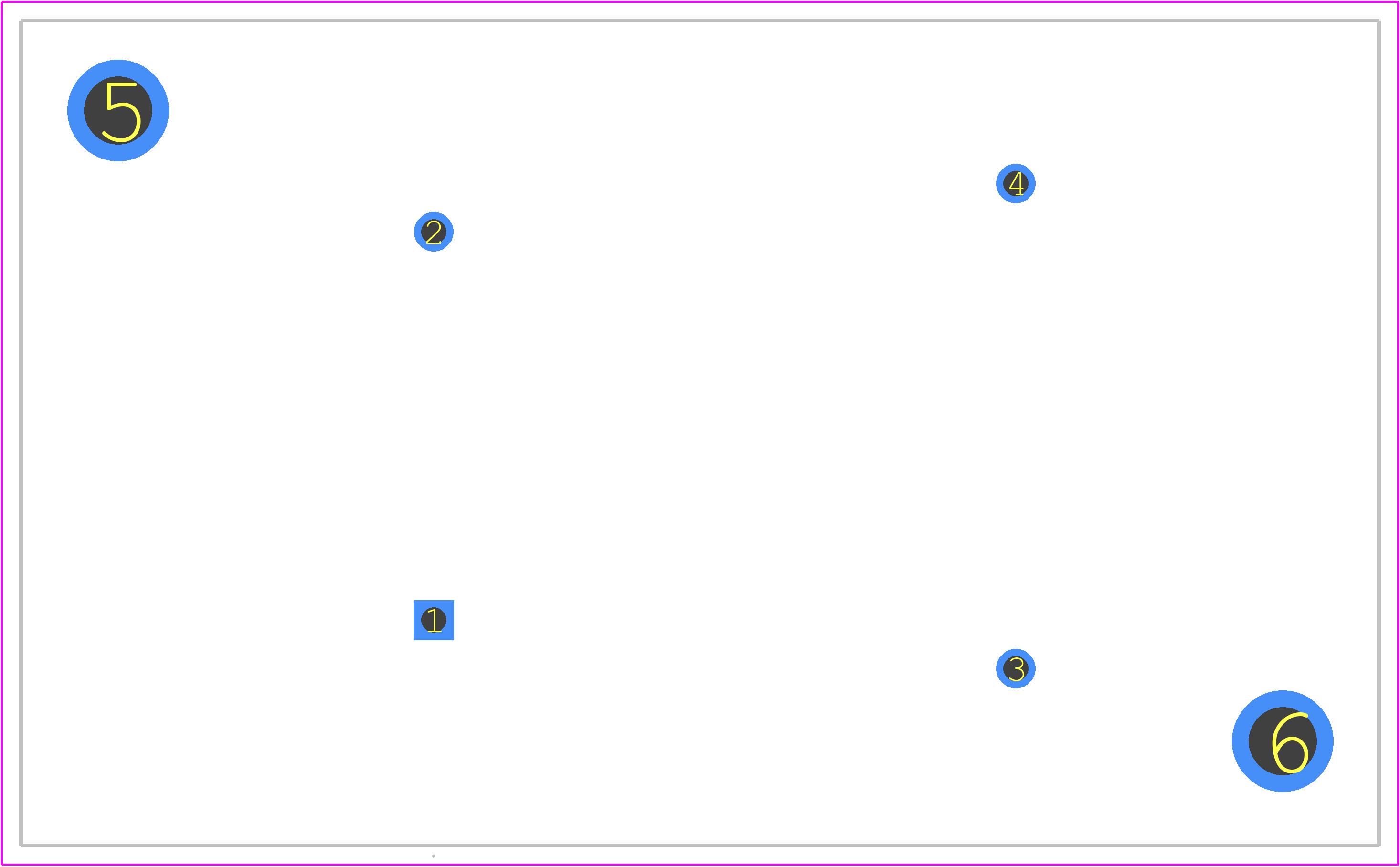

F50 - XP POWER PCB footprint - Other - Other - F50-3
click to zoom
3D Models
F50 - XP POWER  - 3D model - Other - F50-3
click to zoom

F50 Details

  • Manufacturer Part Number:

    F50

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6.2

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    15 V

  • JESD-30 Code:

    R-XDMA-P5

  • Length:

    71.1 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Current-Max:

    0.002 A

  • Output Voltage-Max:

    5000 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT

  • Seated Height-Max:

    22.11 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    125 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    NO

  • Width:

    43.2 mm

F50 Frequently Asked Questions (FAQs)

  • The F50 can operate from -20°C to 70°C, with derating above 50°C.
  • Yes, the F50 is certified for use in Class I, Division 2 hazardous locations, making it suitable for use in explosive atmospheres.
  • The MTBF of the F50 is approximately 550,000 hours, calculated according to MIL-HDBK-217F.
  • Yes, the F50 can be used in a redundant configuration, with features such as parallel operation and current sharing, to provide high reliability and availability.
  • The F50 has a hold-up time of approximately 10ms, allowing it to ride through short power failures without affecting the output.
