F6922AVRI - Renesas Electronics

Description: The F6922 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ku- Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation. An external bias current provides gain control, standby mode and temperature compensation.The F6922 includes two independent gain/phase matched LNA channels in a compact 2

Download F6922AVRI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

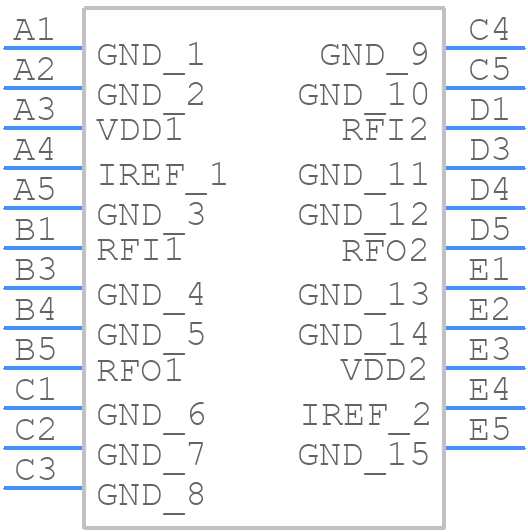

F6922AVRI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F6922AVRI - Renesas Electronics PCB footprint - BGA - BGA - 23-FCCSP, Package Outline Drawing
click to zoom
3D Models
F6922AVRI - Renesas Electronics - 3D model - BGA - 23-FCCSP, Package Outline Drawing
click to zoom

F6922AVRI Details

  • Manufacturer Part Number:

    F6922AVRI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    FCCSP

  • Pin Count:

    23

  • Manufacturer Package Code:

    AVR23D1

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19.5 dB

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    23

  • Operating Frequency-Max:

    21200 MHz

  • Operating Frequency-Min:

    17700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA23,5X5,20

  • Power Supplies:

    0.95 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • VSWR-Max:

    2

F6922AVRI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the F6922AVRI is -40°C to 85°C, but it can operate up to 105°C with reduced performance and lifespan.
  • To configure the F6922AVRI for low-power mode, set the Power Mode Control Register (PMC) to 0x01, and adjust the Clock Control Register (CCR) to reduce the clock frequency. Additionally, disable unnecessary peripherals and use the Sleep mode or Deep Sleep mode to minimize power consumption.
  • The F6922AVRI supports a maximum clock frequency of 32 MHz, but it can be overclocked up to 40 MHz with reduced performance and increased power consumption.
  • To implement a watchdog timer on the F6922AVRI, use the Watchdog Timer (WDT) module and configure it through the Watchdog Timer Control Register (WDTCR). Set the watchdog timer period and enable the WDT interrupt to reset the device if the timer expires.
  • The F6922AVRI has 256 KB of flash memory and 16 KB of SRAM (static random-access memory).
