FA-T220-64E footprint, schematic symbol and 3D model by Ohmite

Symbol

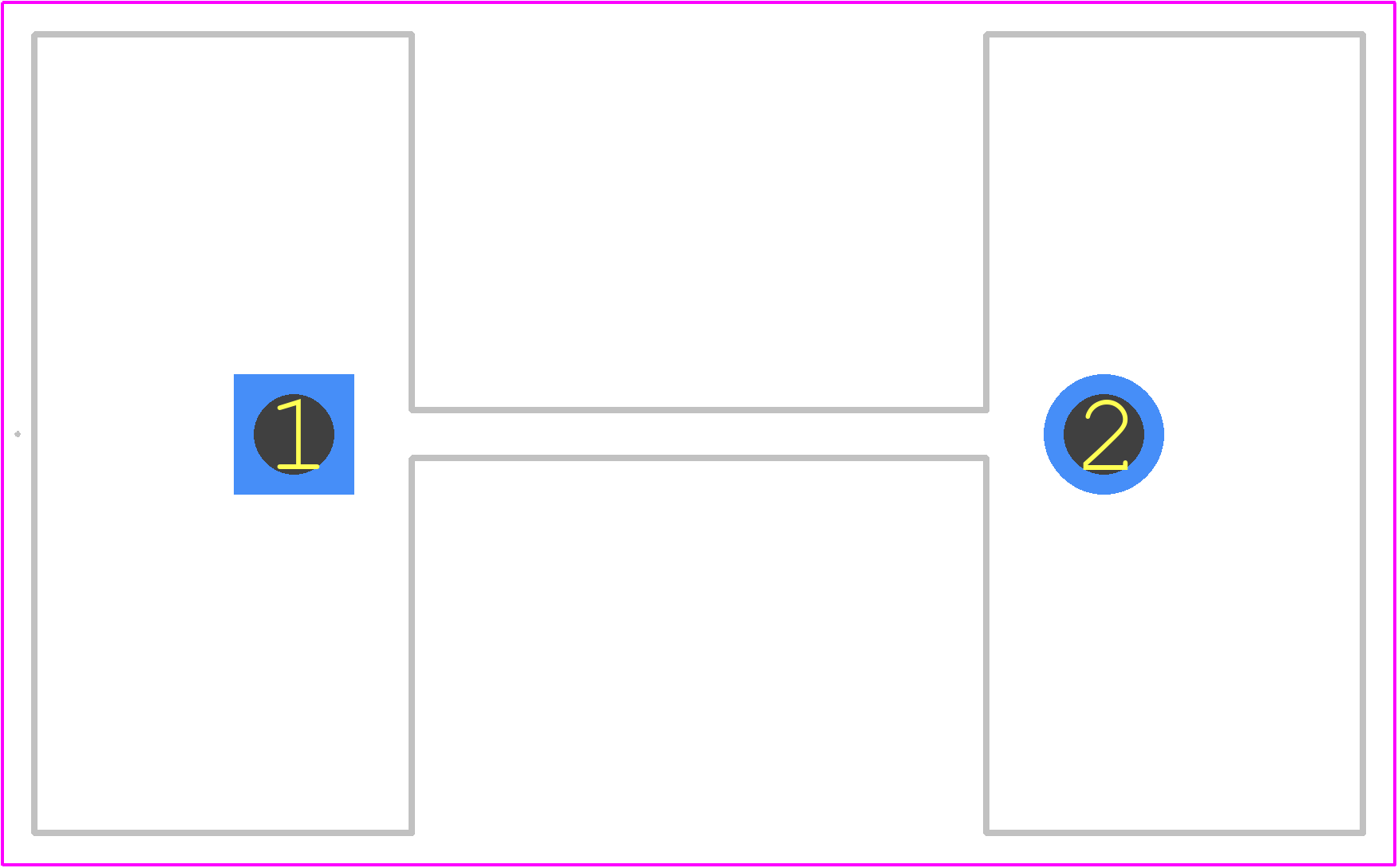

PCB Footprints

3D Models

FA-T220-64E Details

The thermal resistance of the FA-T220-64E is typically around 1.5°C/W, but this can vary depending on the specific application and mounting method.
Yes, the FA-T220-64E is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and installation procedures to ensure reliability.
Yes, the FA-T220-64E is RoHS and REACH compliant, making it suitable for use in environmentally conscious designs.
The recommended torque for mounting the FA-T220-64E is 10-12 in-lbs (1.1-1.4 Nm), but this may vary depending on the specific application and mounting method.
Yes, the FA-T220-64E is designed to operate in high-temperature environments up to 150°C, but derating may be necessary for extended periods of operation at high temperatures.

Community Provided

System Verified

Community Approved

Use the download button to access the FA-T220-64E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FA-T2, or try a keyword search, such as Heat Sinks
