FA1-NDRP-PCB-8 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

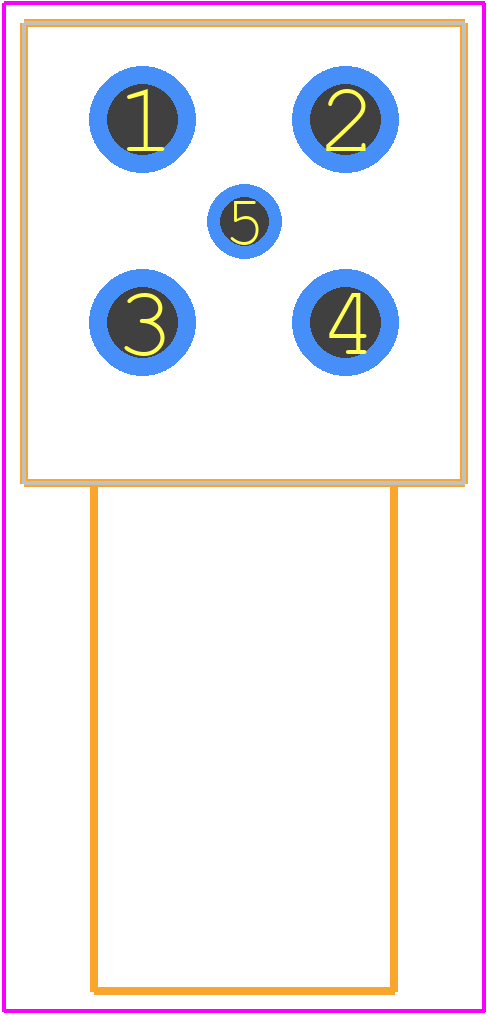

PCB Footprints

FA1-NDRP-PCB-8 - Amphenol PCB footprint - Other - Other - FA1-NDRP-PCB-8-2

click to zoom

3D Models

FA1-NDRP-PCB-8 - Amphenol - 3D model - Other - FA1-NDRP-PCB-8-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FA1-NDRP-PCB-8
Part Number FA1-NDRP-PCB-8
Manufacturer Amphenol
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - FA1-NDRP-PCB-8-2
Released Date May 24, 2019
Last Modified Date Mar 24, 2025 6:32 AM UTC
Pinout / Pin List Click Here (Member Only)

FA1-NDRP-PCB-8 Details

Manufacturer Part Number:
FA1-NDRP-PCB-8
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Amphenol Corporation
YTEOL:
6.76
Additional Feature:
POLARIZED, VSWR MAX AT: 3 GHZ
Body Breadth:
0.32 inch
Body Depth:
0.803 inch
Body/Shell Style:
PLUG
Characteristic Impedance:
50 Ω
Connector Type:
RF SMB CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Style:
COAX
Coupling Type:
SNAP
DIN Conformance:
NO
Dielectric Withstanding Voltage:
1131VAC V
Durability:
100 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYTETRAFLUOROETHYLENE
MIL Conformance:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Frequency-Max:
6 GHz
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Shell Finish:
TIN
Shell Material:
ZINC ALLOY
Terminal Length:
0.126 inch
Termination Type:
SOLDER
Total Number of Contacts:
1
VSWR:
1.5
