The recommended land pattern for FA14X7S2A105KRU06 is available in the TDK Corporation's documentation, such as the 'Recommended Land Pattern' document or the 'Layout Guide' document, which can be found on the TDK website or through direct contact with their technical support team.
The ESR of FA14X7S2A105KRU06 is specified in the datasheet. To handle ESR in your design, consider using impedance analysis tools, like SPICE simulations, to ensure that the ESR does not affect the overall performance of your circuit. Additionally, you can consult with their technical support team for guidance on ESR-related design considerations.
The maximum operating temperature range for FA14X7S2A105KRU06 is specified in the datasheet as -55°C to +125°C. However, it's essential to note that the component's performance may degrade or be affected by temperatures outside this range. For specific temperature-related concerns, consult with TDK Corporation's technical support or guidance.
The FA14X7S2A105KRU06 is designed to withstand certain levels of vibration. However, for high-vibration environments, it's recommended to consult with TDK Corporation's technical support team to determine the component's suitability for your specific application. They can provide guidance on the component's vibration tolerance and recommend alternative components if necessary.
To ensure the reliability of FA14X7S2A105KRU06 in your design, follow the recommended usage guidelines, such as operating within the specified temperature range, voltage, and current ratings. Additionally, consider implementing derating, redundancy, or fail-safe mechanisms in your design to ensure overall system reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FA14X7S2A105KRU06 Overview

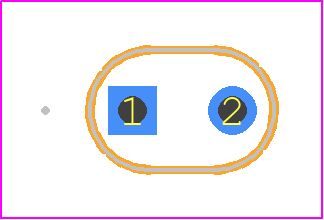

Use the download button to access the FA14X7S2A105KRU06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FA14X,
or try a keyword search, such as Ceramic Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
