FA2659-ALC - COILCRAFT

Description: Pulse Transformers SMT Gate Driver Transformer 2250 Vdc

Download FA2659-ALC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

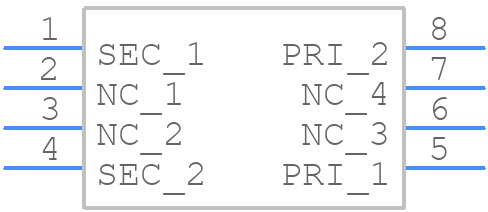

FA2659-ALC - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
FA2659-ALC - COILCRAFT PCB footprint - Other - Other - FA2659-ALC-2
click to zoom
3D Models
FA2659-ALC - COILCRAFT - 3D model - Other - FA2659-ALC-2
click to zoom

FA2659-ALC Details

  • Manufacturer Part Number:

    FA2659-ALC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    7.67

  • Additional Feature:

    HEIGHT DIM INCLUDES TERMINALS ALSO

  • Application:

    GATE DRIVE

  • ET Product-Min:

    34.2 V-us

  • Height:

    7 mm

  • Isolation Voltage:

    2250 V

  • JESD-609 Code:

    e2

  • Length:

    7.85 mm

  • Load Resistance:

    0.655 Ω

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    2000 kHz

  • Operating Frequency-Min:

    50 kHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED PLASTIC, 7 INCH

  • Primary Inductance:

    296 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    7.25 mm

FA2659-ALC Frequently Asked Questions (FAQs)

  • The recommended land pattern for the FA2659-ALC can be found in the Coilcraft Land Pattern Recommendation document, which provides a detailed layout and dimension guidelines for optimal performance.
  • To handle the FA2659-ALC's high frequency behavior, it's recommended to use a 3D electromagnetic simulator to model the component's behavior and optimize the PCB layout for minimal parasitic inductance and capacitance.
  • The FA2659-ALC has an operating temperature range of -40°C to +125°C, but it's recommended to derate the component's current rating for temperatures above 85°C to ensure reliable operation.
  • Yes, the FA2659-ALC is designed to withstand high-vibration environments, but it's recommended to follow Coilcraft's guidelines for vibration testing and to ensure the component is properly secured to the PCB to prevent mechanical stress.
  • To ensure the FA2659-ALC meets your application's EMI requirements, it's recommended to follow Coilcraft's guidelines for EMI shielding and to use a common-mode choke or other EMI filtering components in conjunction with the FA2659-ALC.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FA2659-ALC Overview

Use the download button to access the FA2659-ALC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FA265, or try a keyword search, such as Pulse/Datacom Transformers
