FA2671-ALD footprint, schematic symbol and 3D model by COILCRAFT

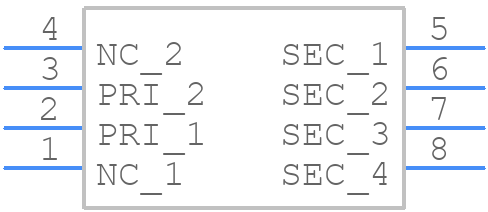

Symbol

click to zoom

PCB Footprints

FA2671-ALD - COILCRAFT PCB footprint - Other - Other - FA2671-ALD-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FA2671-ALD
Part Number FA2671-ALD
Manufacturer COILCRAFT
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - FA2671-ALD-2
Released Date Dec 3, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FA2671-ALD Details

Manufacturer Part Number:
FA2671-ALD
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.1
Additional Feature:
HEIGHT DIM INCLUDE TERMINAL ALSO
Application:
SIGNAL
Height:
11 mm
Input Voltage-Max:
72 V
Input Voltage-Min:
36 V
Isolation Voltage:
1500 V
Length:
12.7 mm
Load Resistance:
0.062 Ω
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current 1:
3 A
Output Voltage 1:
3.3 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
10 W
Primary Inductance:
40 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Tin - with Nickel barrier
Transformer Type:
SMPS TRANSFORMER
Turns Ratio (Np:Ns):
1:0.3
Width:
10.5 mm

FA2671-ALD Frequently Asked Questions (FAQs)

Coilcraft recommends a land pattern with a minimum pad size of 1.5 mm x 1.5 mm and a non-solder-mask-defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
To minimize electromagnetic interference (EMI), keep the inductor at least 5 mm away from sensitive components, and consider using a shield or a metal can to contain the magnetic field.
The FA2671-ALD is rated for operation from -40°C to +125°C, but derating may be necessary for high-temperature applications to ensure reliability and prevent thermal runaway.
While the FA2671-ALD is designed to withstand normal handling and mounting stresses, it is not specifically designed for high-vibration environments. Consider using a vibration-resistant inductor or adding mechanical reinforcement to ensure reliability.
Use Coilcraft's online inductor selection tool or consult with a Coilcraft application engineer to determine the optimal inductor value based on your specific application's requirements, such as operating frequency, current, and voltage.
