The recommended land pattern for FA28X8R1H103KNU06 can be found in the TDK Corporation's Capacitor Land Pattern document, which provides guidelines for pad layout and spacing to ensure reliable mounting and soldering.
The FA28X8R1H103KNU06 capacitor is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for high-frequency applications such as decoupling and filtering.
Yes, the FA28X8R1H103KNU06 capacitor is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature, and vibration resistance.
The maximum operating temperature range for FA28X8R1H103KNU06 is -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and consumer electronics.
Yes, the FA28X8R1H103KNU06 capacitor is designed to withstand high vibrations and is suitable for applications that require high reliability in harsh environments, such as industrial, automotive, and aerospace.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FA28X8R1H103KNU06 Overview

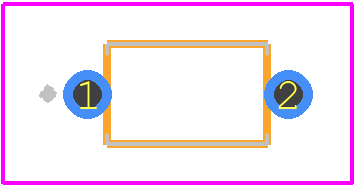

Use the download button to access the FA28X8R1H103KNU06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FA28X,
or try a keyword search, such as Ceramic Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
