FAD1100-F085 - onsemi

Description: 5 V Output Level Optimized to Drive Ignition IGBTs Programmable Input Current through RA Line with 13 s Input Spike Filter IGBT Current Sense and Current Limit Configurable Maximum Dwell Time with Soft Shut Down Protection Operation from Ignition on Battery Line down to 6 V 28 V Battery Capable for Jump Start Over Voltage Protection Ground Shift Tolerance ±1.5 V SO8 Package or Die Sales AEC-Q100 Grade 0 Qualified This Device is Pb-Free and is RoHS Compliant

Download FAD1100-F085 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FAD1100-F085 model

Email notifications will be applied after download.

Send part feedback

Symbol

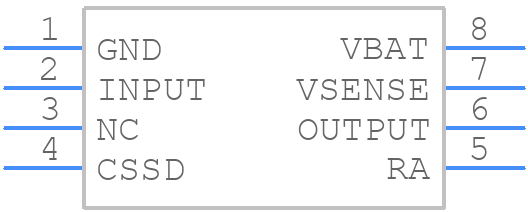

FAD1100-F085 - onsemi - PCB symbol

PCB Footprints

FAD1100-F085 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751EB ISSUE A

3D Models

FAD1100-F085 - onsemi - 3D model - Small Outline Packages - SOIC8 CASE 751EB ISSUE A

Datasheet Download Datasheet
Stock & Prices Price & Stock for FAD1100-F085
Part Number FAD1100-F085
Manufacturer onsemi
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC8 CASE 751EB ISSUE A
Released Date Jul 24, 2025
Last Modified Date Jul 24, 2025 3:36 AM UTC
Pinout / Pin List Click Here (Member Only)

FAD1100-F085 Details

Manufacturer Part Number:
FAD1100-F085
Part Life Cycle Code:
Active
Package Description:
,
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
7
Interface IC Type:
BUFFER OR INVERTER BASED IGBT DRIVER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FAD1100-F085 Overview

Use the download button to access the FAD1100-F085 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FAD11, or try a keyword search, such as MOSFET Drivers
