Description:Single Channel Gate Driver with 110 V floating Vs capability; Negative Transient Capability up to −80 V; 2.5 A Output Source and Sink Current; MOSFET Drain−Source Desaturation Detection with Soft Shutdown; Under−voltage Lock Out for both Input Logic and Output Stage; High Speed Driver with Short Propagation Delay; 3.3 V and 5 V Input Logic Compatible
A good PCB layout for the FAD3171MXA should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a low-thermal-resistance path to the PCB's ground plane. Use multiple vias to connect the thermal pad to the ground plane, and keep the thermal pad as close to the device as possible.
Choose an input capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. A ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitor value should be at least 10uF, and it's recommended to use a capacitor with a voltage rating of 50V or higher.
The maximum allowed voltage drop across the internal FETs is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses.
The FAD3171MXA is rated for operation up to 150°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device's junction temperature (Tj) remains below the maximum rating of 150°C.
To troubleshoot OCP issues, first, verify that the input voltage and current are within the recommended specifications. Check the PCB layout for any signs of overheating or thermal stress. Use an oscilloscope to monitor the device's output voltage and current during the OCP event. If the issue persists, consult the datasheet and application notes for guidance on OCP threshold adjustment and fault detection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAD3171MXA Overview

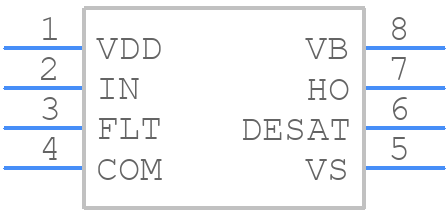

Use the download button to access the FAD3171MXA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAD31,
or try a keyword search, such as Peripheral Drivers
