FAD7191M1X - onsemi

Description: Floating Channel for Bootstrap Operation to +600V ; 4.5A Sourcing and 4.5A Sinking Current Driving Capability ; Common-Mode dV/dt Noise Cancelling Circuit ; Built-in Under-Voltage Lockout for Both Channels ; Matched Propagation Delay for Both Channels ; 3.3V and 5V Input Logic Compatible ; Output In-phase with Input ; Qualified to AEC Q100 ; Separate signal and power grounds; 14-SOP package with creepage and clearance for High Voltage applications; Enable pin for shutdown redundancy purpose

Download FAD7191M1X Model

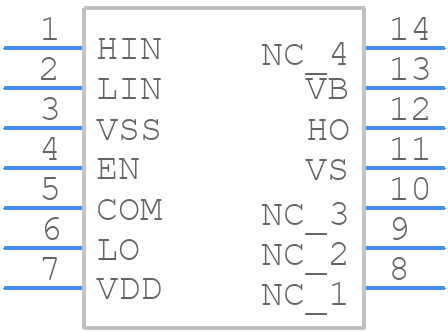

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAD7191M1X - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 14-SOP-1
click to zoom
3D Models
FAD7191M1X - onsemi  - 3D model - Small Outline Packages - 14-SOP-1
click to zoom

FAD7191M1X Details

  • Manufacturer Part Number:

    FAD7191M1X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Package Description:

    SOP-14

  • Manufacturer Package Code:

    751EF

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    4.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage-Max:

    22 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    622 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

FAD7191M1X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the decoupling capacitors close to the device.
  • Use a low-ESR capacitor (e.g., 10uF) for power decoupling, and place it as close as possible to the device. Add a 1uF capacitor in parallel for high-frequency decoupling. Ensure the power supply is clean and regulated, with a minimum of 3.0V and a maximum of 3.6V.
  • The recommended clock frequency is between 1MHz and 20MHz. However, the device can operate up to 40MHz, but with reduced performance. A clock frequency of 10MHz is a good starting point for most applications.
  • The FAD7191M1X has a differential analog input range of ±2.5V. To scale the input signal, use an external amplifier or attenuator to match the input range. Ensure the input signal is within the specified range to avoid clipping or distortion.
  • The FAD7191M1X has a latency of approximately 1.5 clock cycles. This means that the device takes 1.5 clock cycles to convert an analog input to a digital output. Consider this latency when designing your system's timing and synchronization.
