FAE1WSJR-52-10R - Yageo Group

Description: 10 Ohms ±5% 1W Through Hole Resistor Axial Flame Proof, Fusible, Safety Wirewound

Download FAE1WSJR-52-10R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FAE1WSJR-52-10R - Yageo Group - PCB symbol
click to zoom
PCB Footprints

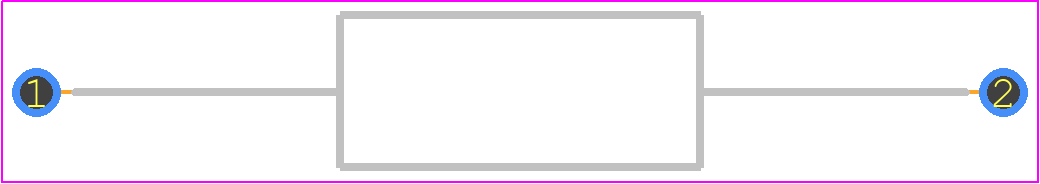

FAE1WSJR-52-10R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - FAE1WS
click to zoom
3D Models
FAE1WSJR-52-10R - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - FAE1WS
click to zoom

FAE1WSJR-52-10R Details

  • Manufacturer Part Number:

    FAE1WSJR-52-10R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    7

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Tubular

  • Fusing Time:

    60 s

  • Lead Diameter:

    0.55 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    275 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    3.8 mm

  • Package Length:

    9 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR, 12 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    UL

  • Resistance:

    10 Ω

  • Resistor Type:

    FUSIBLE RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    300 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    3.16 V

FAE1WSJR-52-10R Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for FAE1WSJR-52-10R is 250°C for 3-5 seconds, with a peak temperature of 260°C. However, it's recommended to consult the YAGEO Corporation's soldering guidelines for specific instructions.
  • Yes, FAE1WSJR-52-10R is compatible with lead-free soldering processes. YAGEO Corporation ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The moisture sensitivity level (MSL) of FAE1WSJR-52-10R is MSL 3, which means it can withstand a maximum of 168 hours of exposure to 30°C and 60% relative humidity before soldering.
  • Yes, FAE1WSJR-52-10R is suitable for high-frequency applications up to 1 GHz. However, it's recommended to consult the datasheet and application notes for specific guidance on impedance matching and layout considerations.
  • The operating temperature range of FAE1WSJR-52-10R is -55°C to 125°C. However, it's recommended to consult the datasheet for specific temperature derating guidelines.
