A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and connect it to a heat sink or a thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using thermal interface materials and following proper PCB design guidelines for thermal management.
To mitigate EMI and RFI in designs using the FAM65CR51DZ2, consider using shielding, filtering, and grounding techniques. Ensure that the PCB layout is designed to minimize radiation, and use components with low EMI emissions. Additionally, follow proper cable routing and termination practices, and consider using EMI filters or common-mode chokes.
To troubleshoot issues related to the internal voltage regulator, start by checking the input voltage, output voltage, and current consumption. Verify that the input voltage is within the recommended range and that the output voltage is stable. Check for any signs of overheating, and ensure that the device is properly soldered and connected to the PCB.
In designs with high electromagnetic susceptibility, the FAM65CR51DZ2 may be more prone to electromagnetic interference (EMI). To mitigate this, consider using shielding, filtering, and grounding techniques, as well as following proper PCB design guidelines for EMI reduction. Additionally, ensure that the device is properly decoupled and that the power supply is stable.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAM65CR51DZ2 Overview

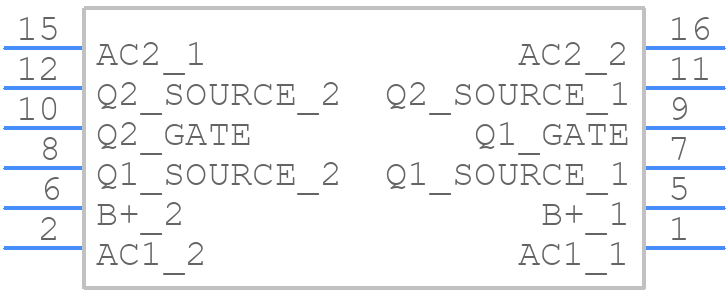

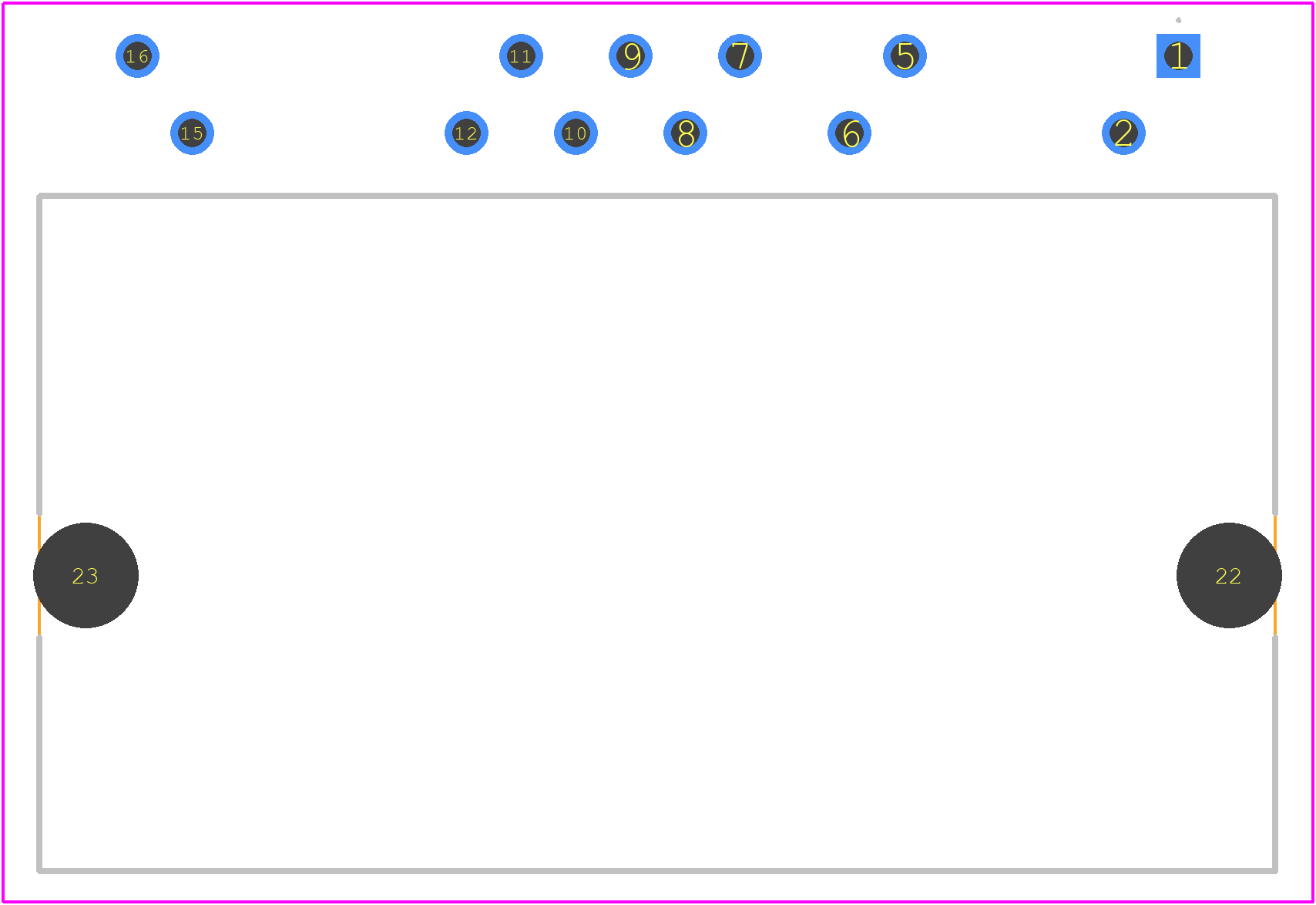

Use the download button to access the FAM65CR51DZ2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAM65,
or try a keyword search, such as Switching Regulator or Controllers
