Description:Programmable maximum dwell time; Control IGBT current limiting through Vsense pin ; Signal Line Input Buffer ; Ground shift tolerance +/- 1.5 V ; Programmable Input Pull down current ; Soft Shutdown following Max Dwell Time out ; Input spike filter ; Operation from Ignition or Battery line
A good PCB layout for the FAN1100-F085 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
To ensure reliable operation across the full temperature range (-40°C to 150°C), follow the recommended operating conditions, and consider the device's thermal derating. Also, ensure proper PCB design, component selection, and thermal management to minimize thermal stress.
To minimize EMI and RFI, use a multi-layer PCB with a solid ground plane, and ensure good decoupling and bypassing. Keep high-frequency traces short and away from sensitive nodes. Use shielding or metal enclosures to contain emissions. Follow onsemi's application notes for EMI and RFI mitigation.
To optimize the FAN1100-F085 for low-power consumption, operate the device at the lowest possible voltage, and minimize the quiescent current. Use the device's built-in power-saving features, such as the low-power mode, and optimize the system's power management strategy.
For accurate testing and measurement, use a 4-point Kelvin connection to minimize measurement errors. Ensure the device is properly powered and decoupled. Use a high-impedance probe or a differential probe to measure voltage and current. Follow onsemi's application notes for specific test and measurement procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN1100-F085 Overview

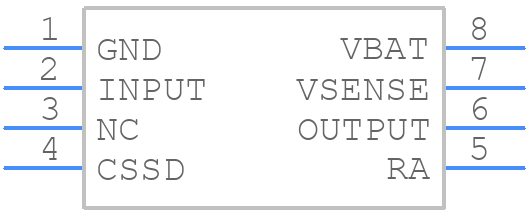

Use the download button to access the FAN1100-F085 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN11,
or try a keyword search, such as MOSFET Drivers
