The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and using multiple vias to dissipate heat to the bottom layer. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it is essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
The maximum allowed voltage on the input pins is 5V, which is the absolute maximum rating. However, it is recommended to operate the device within the specified input voltage range of 1.8V to 3.6V for reliable operation.
The FAN23SV60MPX has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
The recommended input capacitance value for optimal performance is 1uF to 10uF, depending on the specific application requirements. A larger input capacitance can help to improve the power supply rejection ratio (PSRR) and reduce output voltage ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN23SV60MPX Overview

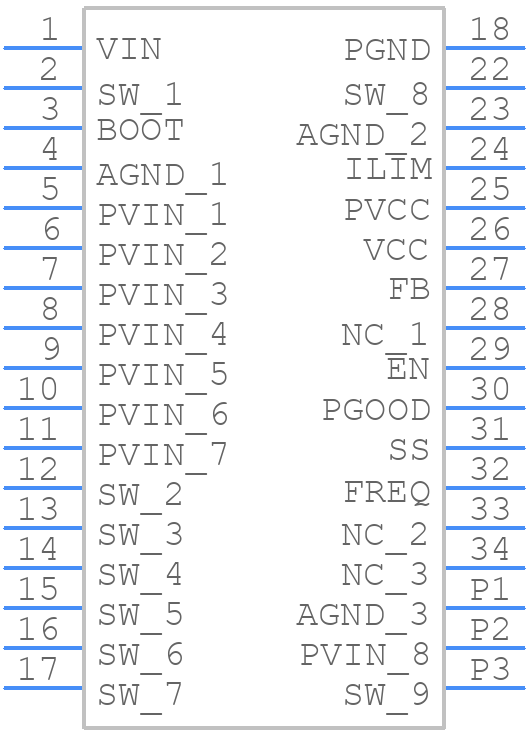

Use the download button to access the FAN23SV60MPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN23,
or try a keyword search, such as Switching Regulator or Controllers
