FAN48623UC50X - onsemi

Description: 4 External Components: 2520 case 0.47 µH Inductor and 0603 Case Size Input and Output Capacitors; Up to 97% Efficient; Input Voltage Range: 2.5 V to 5.5 V; VSEL Control to Optimize Target VOUT; True Load Disconnect; 16-Bump, 1.81mm x 1.81mm, 0.4mm Pitch, WLCSP; Forced Bypass Mode; Integrated Synchronous Rectifier; True Bypass Operatin when VIN > Target VOUT; Maximum Pulse Load Current of 3.5 A for GSM PAs (1 Slot) and PMIC support simultaneously, VIN=3.1 V, VOUT=3.4 V; Fixed Output Voltage Options: 3.0 V to

Download FAN48623UC50X Model

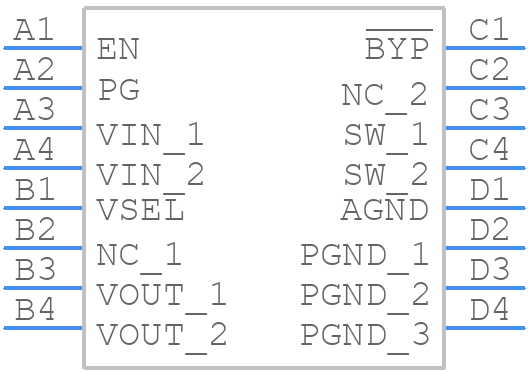

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN48623UC50X - onsemi PCB footprint - BGA - BGA - WLCSP16 1.81x1.81x0.586 CASE 567QZ ISSUE O
click to zoom
3D Models
FAN48623UC50X - onsemi  - 3D model - BGA - WLCSP16 1.81x1.81x0.586 CASE 567QZ ISSUE O
click to zoom

FAN48623UC50X Details

  • Manufacturer Part Number:

    FAN48623UC50X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-16

  • Package Description:

    WLCSP-16

  • Manufacturer Package Code:

    567QZ

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-XBGA-B16

  • Length:

    1.81 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.81 mm

FAN48623UC50X Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure that the input voltage rises and falls monotonically, and that the input capacitor is properly sized to filter out noise and ripple. Also, add a soft-start circuit to limit inrush current during start-up.
  • The maximum allowed voltage on the EN pin is 6V. To protect it from overvoltage, use a voltage divider or a zener diode to clamp the voltage to a safe level.
  • Use the recommended compensation network values in the datasheet as a starting point, and then adjust them based on the specific application requirements and PCB layout. You can also use simulation tools to optimize the compensation network.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin to minimize noise and ripple.
