FAN48695UC190X - onsemi

Description: Input Voltage Range: 2.5 V to 5.5 V; 1 A Load Capability; PFM / PWM for high efficiency; 2.5 MHz Fixed Frequency PWM Operation; Synchronous Rectification; Reverse Current Blocking; Automatic Pass−Through Operation; Forced Pass−Through Mode; Over Temperature Protection; Over Current Protection; Under Voltage Protection; 3 Stage Soft Start; These Devices are Pb−Free and are RoHS Compliant

Download FAN48695UC190X Model

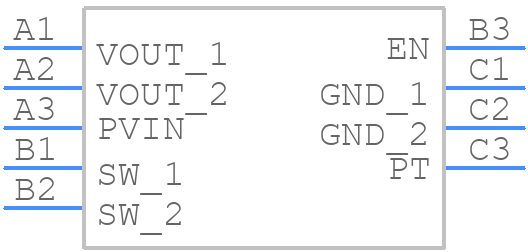

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN48695UC190X - onsemi PCB footprint - BGA - BGA - FAN48695UC190X
click to zoom
3D Models
FAN48695UC190X - onsemi  - 3D model - BGA - FAN48695UC190X
click to zoom

FAN48695UC190X Details

  • Manufacturer Part Number:

    FAN48695UC190X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-9

  • Package Description:

    WLCSP-9

  • Manufacturer Package Code:

    567VH

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    PFM CONROL ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.8 V

  • JESD-30 Code:

    R-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.365 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.624 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2750 kHz

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.315 mm

FAN48695UC190X Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN48695UC190X should prioritize thermal dissipation. Ensure a solid ground plane, use thermal vias to connect the device to the ground plane, and keep the component placement symmetrical to minimize thermal gradients. Refer to onsemi's application notes and layout guidelines for more information.
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 1.5 times the maximum input voltage. However, it's recommended to consult onsemi's application notes and perform simulations to determine the optimal capacitor values for your specific design.
  • The FAN48695UC190X has a maximum ambient temperature rating of 85°C. However, the device's junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • The FAN48695UC190X is an industrial-grade device, but it's not specifically designed for high-reliability or automotive applications. For such applications, consider using devices with higher reliability ratings, such as AEC-Q100 qualified devices. Consult onsemi's product portfolio for suitable alternatives.
  • To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors. Ensure the feedback resistors are correctly connected and the output voltage is within the specified range. Consult onsemi's application notes and datasheet for more information on output voltage regulation and troubleshooting.
