FAN5362UMP33X - onsemi

Description: Smooth Transitions to/from 100% Duty Cycle when VIN Drops; Best-in-Class Efficiency; 2.7V to 5.5V Input Voltage Range; Internal Soft-Start; PFM Mode for High Efficiency in Light Load; Forced PWM and External Clock Synchronization; 500mA Output Current Capability; 1.80 to 3.6V Fixed Output Voltage; 3MHz Fixed-Frequency Operation; Input Under-Voltage Lockout (UVLO); Thermal Shutdown and Overload Protection; 45µA Typical Quiescent Current; 6-Bump WLCSP, 0.4mm Pitch or 6-Lead 2 x 2mm Ultrathin Molded Leadless P

Download FAN5362UMP33X Model

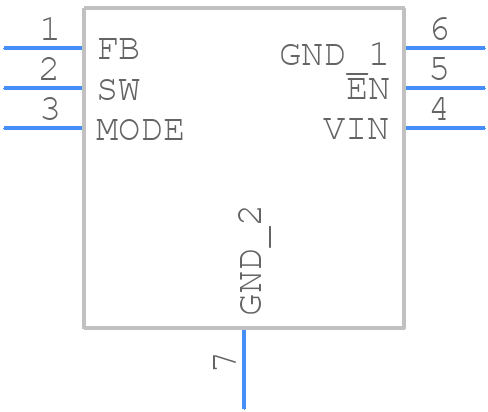

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN5362UMP33X - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN6 2x2, 0.65P CASE 517DR ISSUE A
click to zoom
3D Models
FAN5362UMP33X - onsemi  - 3D model - Small Outline No-lead - UDFN6 2x2, 0.65P CASE 517DR ISSUE A
click to zoom

FAN5362UMP33X Details

  • Manufacturer Part Number:

    FAN5362UMP33X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UDFN-6

  • Package Description:

    UDFN-6

  • Manufacturer Package Code:

    517DR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    66 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO CONFIGURE IN PULSE FREQUENCY MODULATION

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.15 A

  • Output Voltage-Max:

    3.465 V

  • Output Voltage-Min:

    3.135 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

FAN5362UMP33X Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink.
  • To ensure proper biasing, connect the VIN pin to a stable voltage source, and the EN pin to a logic-level signal. Also, ensure the input voltage is within the recommended range (2.5V to 5.5V) and the output voltage is within the recommended range (0.8V to VIN).
  • The maximum output current capability of the FAN5362UMP33X is 3A. However, the actual output current capability may be limited by the thermal performance of the device and the PCB layout.
  • To protect the device from overvoltage and undervoltage conditions, use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range.
  • The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor (e.g., X5R or X7R) to minimize voltage ripple and ensure stable operation.
