A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal management techniques such as airflow or convection cooling. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To troubleshoot issues related to output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and look for any signs of oscillation or instability.
To mitigate EMI and RFI in designs using the FAN53880UC002X, use a solid ground plane, keep the device and surrounding components away from noise sources, and use shielding or filtering techniques. Additionally, ensure that the PCB layout is optimized for minimal radiation and that the device is properly decoupled.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN53880UC002X Overview

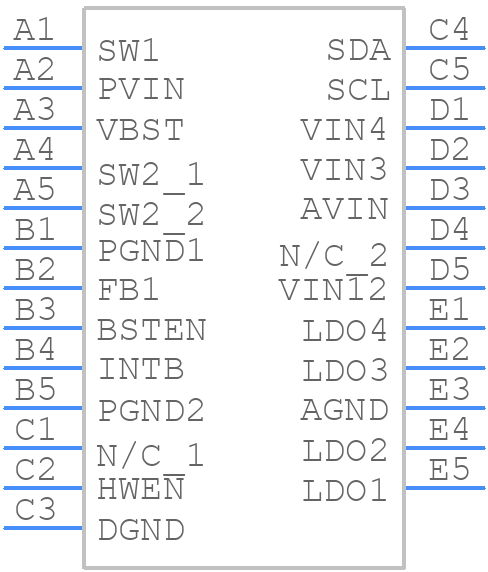

Use the download button to access the FAN53880UC002X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN53,
or try a keyword search, such as Power Management Circuits
