Description:3 MHz Synchronous Buck PWM Controller with Wide Duty Cycle Range; Fast-Charge / Termination Current; 6 V Maximum Input Operating Voltage; 1.8 V Regulated Output from VBUS for Auxiliary Circuits; Small Footprint 1 H External Inductor; ±1% from 0 to 125°C; Input Current; ±5% Input Current Regulation Accuracy; ±5% Charge Current Regulation Accuracy; 5 V, 500 mA Boost Mode for USB OTG for 3.0 V to 4.5 V Battery Input; Low Reverse Leakage to Prevent Battery Drain to VBUS; 20 V Absolute Maximum Input Voltage; Ch
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a solid ground plane, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using a 2-3 layer PCB with a thermal relief pattern can help to dissipate heat more efficiently.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Ensure the input voltage is within the recommended range of 4.5V to 5.5V, and the output voltage is within the recommended range of 0.8V to 3.3V. Also, ensure the output current does not exceed the recommended maximum current of 5A.
When handling the device, take precautions to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat, and handle the device by the body or pins, avoiding touching the die. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is operating within the recommended operating conditions. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet or contact onsemi support for further assistance.
The device has a maximum junction temperature of 150°C. To ensure reliable operation, maintain a junction temperature below 125°C. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Avoid blocking airflow or using a device with a high thermal resistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN54005UCX Overview

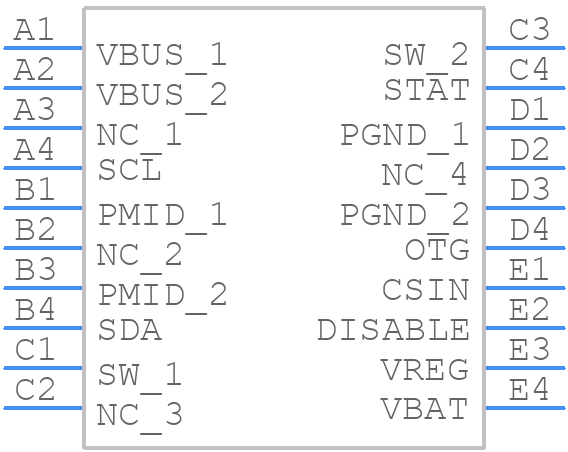

Use the download button to access the FAN54005UCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN54,
or try a keyword search, such as Power Management Circuits
