FAN54013UCX - onsemi

Description: Fairchild Semiconductor FAN54013UCX, Lithium-Ion, Battery Charge Controller IC, 1.45A 20-Pin, WLCSP

Download FAN54013UCX Model

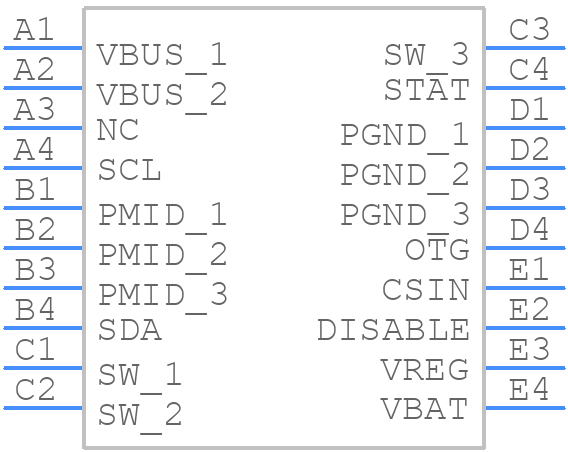

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN54013UCX - onsemi PCB footprint - BGA - BGA - 20-Ball WLCSP, 4X5 Array, 0.4 mm Pitch, 250 µm Ball
click to zoom
3D Models
FAN54013UCX - onsemi  - 3D model - BGA - 20-Ball WLCSP, 4X5 Array, 0.4 mm Pitch, 250 µm Ball
click to zoom

FAN54013UCX Details

  • Manufacturer Part Number:

    FAN54013UCX

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WLCSP-20

  • Manufacturer Package Code:

    567SL

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO HAS A CONTROL TECHNIQUE OF PFM

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4.29 V

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    1.96 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.45 A

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max (Isup):

    0.3 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.87 mm

FAN54013UCX Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and using multiple vias to connect the thermal pad to the copper area. This helps to dissipate heat efficiently and reduce thermal resistance.
  • The input capacitor should be chosen based on the input voltage ripple, output voltage, and switching frequency. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the input voltage. Additionally, the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • The maximum ambient temperature for the FAN54013UCX is 85°C. However, the device can operate at higher temperatures with derating. It's recommended to consult the datasheet for derating curves and to ensure that the device is operated within its recommended operating conditions.
  • Yes, the FAN54013UCX is suitable for high-reliability applications. It is built with high-reliability materials and manufacturing processes, and is qualified to automotive and industrial standards. However, it's recommended to consult the datasheet and to perform thorough testing and validation to ensure that the device meets the specific requirements of the application.
  • To troubleshoot issues with the FAN54013UCX, start by checking the input voltage, output voltage, and switching frequency. Verify that the device is operated within its recommended operating conditions and that the PCB layout is correct. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for troubleshooting guidelines and to ensure that the device is used correctly.
