A good PCB layout for the FAN5702UC15X should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a low-thermal-resistance path to the PCB's ground plane. Use multiple vias to connect the thermal pad to the ground plane, and keep the thermal pad as large as possible.
The input capacitor value depends on the input voltage ripple, output voltage, and switching frequency. A general guideline is to use a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 1.5 times the input voltage. Consult the datasheet and application notes for more specific guidance.
The maximum output current of the FAN5702UC15X is 2A, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet's thermal derating curves and output current vs. input voltage graphs to ensure safe operation.
To ensure stability, follow the datasheet's guidelines for output capacitor selection, and use a capacitor with a low equivalent series resistance (ESR). Additionally, ensure the input voltage is within the recommended range, and the device is properly decoupled with ceramic capacitors.
The EN pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. Use the EN pin to implement power sequencing, or to turn the device on and off as needed. Be sure to follow the datasheet's guidelines for EN pin voltage and timing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN5702UC15X Overview

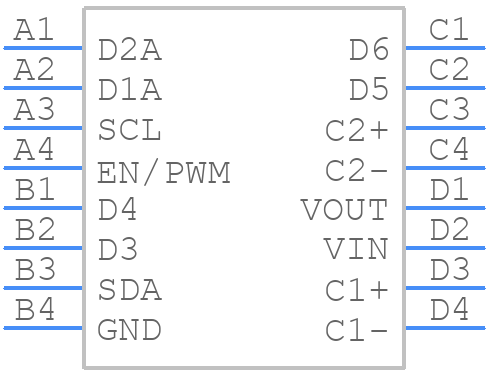

Use the download button to access the FAN5702UC15X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN57,
or try a keyword search, such as Display Drivers
