Description:>600:1 Dimming Ratio for 100Hz PWM Frequency; Built-in 1.5x Charge Pump with Low-Dropout Bypass Switch; I2C Interface for Easy Programming; 1.2 MHz Switching Frequency for Small-Sized Capacitors; Six (6) Parallel LEDs (up to 30 mA each); Up to 92% Efficiency; Dynamic Backlight Control (DBC) to Reduce CurrentConsumption ; Logarithmically Controlled Dimming with 64 Steps; Secondary Brightness Control Using PWM Dimmingup to 20 kHz in Conjunction with I2C Dimming; Total Package Load Current Capability: 180 mA;
A good PCB layout for the FAN5702UMP20X should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure reliable operation at high temperatures, ensure that the device is properly heatsinked, and the thermal interface material (TIM) is applied correctly. Also, follow the recommended operating conditions and derating guidelines in the datasheet.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
To troubleshoot issues with the FAN5702UMP20X, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, thermal design, and component selection. Use an oscilloscope to check for voltage ripple, noise, and oscillations. Consult the datasheet and application notes for guidance.
Yes, the FAN5702UMP20X is suitable for high-reliability and automotive applications. However, ensure that you follow the recommended operating conditions, and comply with the relevant industry standards and regulations, such as AEC-Q100.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN5702UMP20X Overview

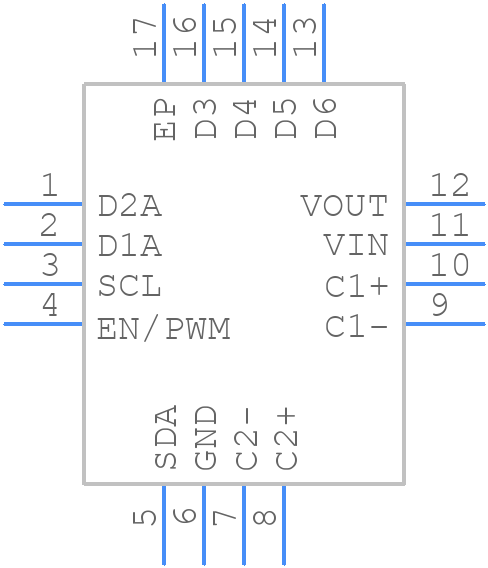

Use the download button to access the FAN5702UMP20X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN57,
or try a keyword search, such as Display Drivers
