A good thermal design should include a solid ground plane, thermal vias under the package, and a heat sink if possible. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to optimize the design.
The FAN5702UMP30X requires a bias voltage (VCC) of 3.3V or 5V, and a bias current (IBIAS) of 10mA to 50mA. Ensure the bias voltage is stable and within the recommended range, and the bias current is set according to the application requirements.
The maximum power dissipation of the FAN5702UMP30X is 1.5W. However, the actual power dissipation depends on the application, operating frequency, and thermal design. It's essential to calculate the power dissipation based on the specific use case and ensure the device is operated within the recommended thermal limits.
The FAN5702UMP30X is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design, heat sinking, and cooling mechanisms to ensure the device operates within the recommended temperature range.
To troubleshoot issues with the FAN5702UMP30X, start by verifying the power supply, biasing, and input/output connections. Use oscilloscopes and signal generators to test the device's performance. Consult the datasheet, application notes, and onsemi's support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN5702UMP30X Overview

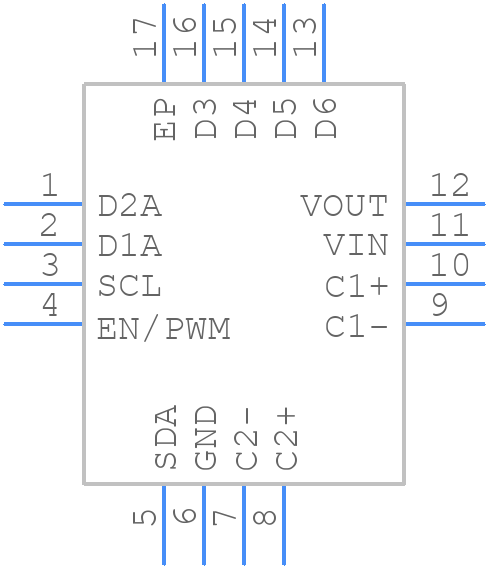

Use the download button to access the FAN5702UMP30X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN57,
or try a keyword search, such as Display Drivers
