A good PCB layout for the FAN6390MPX should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the high-current paths short and wide, and avoid routing high-frequency signals near the device.
The input capacitor should be selected based on the input voltage ripple, output voltage, and switching frequency. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
The maximum allowed voltage on the EN (enable) pin is 6V. Exceeding this voltage may damage the internal circuitry. It's recommended to use a voltage divider or a level shifter if the control signal is higher than 6V.
The FAN6390MPX is rated for operation up to 150°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management and consider derating the device's specifications according to the temperature derating curve provided in the datasheet.
To troubleshoot the FAN6390MPX, start by verifying the input voltage, output voltage, and enable signal. Check for proper PCB layout, component selection, and soldering quality. Use an oscilloscope to monitor the switching node and output voltage waveforms. Consult the datasheet and application notes for guidance on specific troubleshooting steps.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN6390MPX Overview

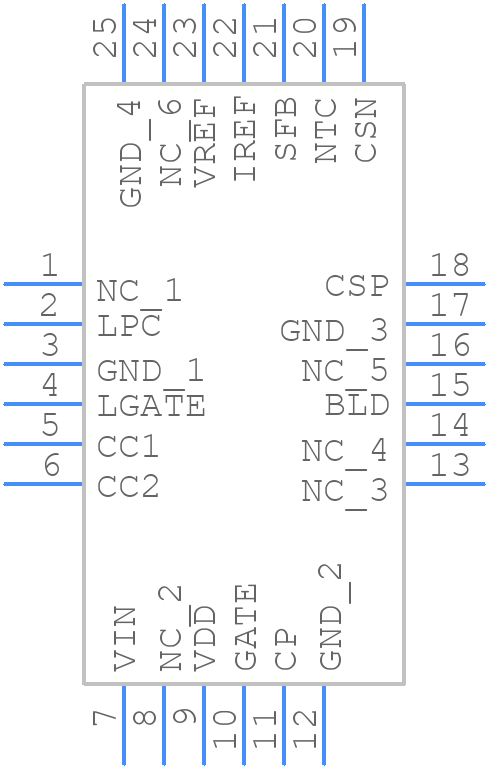

Use the download button to access the FAN6390MPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN63,
or try a keyword search, such as Power Management Circuits
