A good PCB layout for the FAN7392MX involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the load. Additionally, using a 4-layer PCB with a solid ground plane and a separate power plane can help reduce EMI.
To ensure proper thermal management, make sure to attach a heat sink to the device, and use thermal interface material to fill any gaps. The heat sink should be designed to dissipate heat efficiently, and the device should be placed in a well-ventilated area to prevent overheating.
The recommended input capacitor value for the FAN7392MX is 10uF to 22uF, with a voltage rating of 50V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended for optimal performance.
To troubleshoot issues with the FAN7392MX, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly cooled and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple and noise, and consult the datasheet for specific troubleshooting guidelines.
Yes, the FAN7392MX is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and is designed to operate in harsh environments with high temperatures and voltage fluctuations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN7392MX Overview

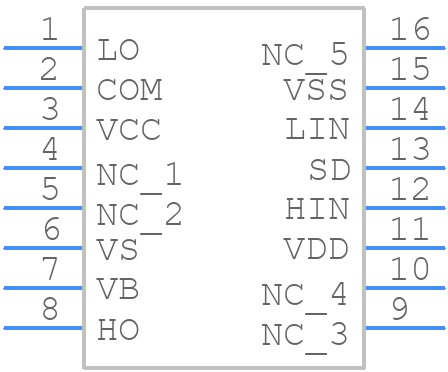

Use the download button to access the FAN7392MX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN73,
or try a keyword search, such as Peripheral Drivers
