FAN7392N - onsemi

Description: Gate Drivers Half Bridge Gate

Download FAN7392N Model

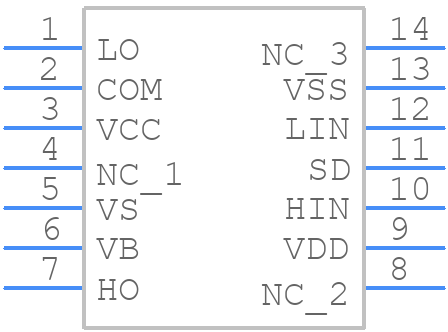

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

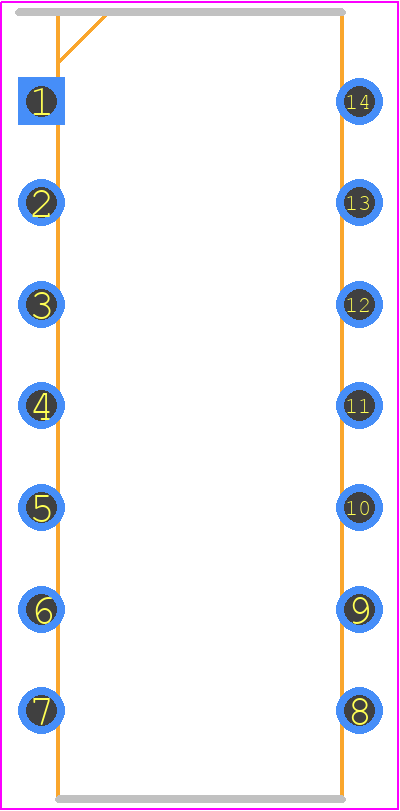

FAN7392N - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14_1
click to zoom

FAN7392N Details

  • Manufacturer Part Number:

    FAN7392N

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-14

  • Package Description:

    DIP-14

  • Manufacturer Package Code:

    646-06

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.18 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.18 µs

  • Width:

    7.62 mm

FAN7392N Frequently Asked Questions (FAQs)

  • The FAN7392N can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • The FAN7392N requires a bias voltage of 5V to 15V on the VCC pin, and a bias current of 1mA to 10mA on the IBIAS pin. Ensure the bias voltage and current are within these ranges for optimal performance.
  • To minimize EMI, use a multi-layer PCB with a solid ground plane, and keep the FAN7392N away from noise sources. Use short, direct traces for the input and output signals, and avoid routing signals near the device's power pins.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins of the FAN7392N. Ensure that the PCB design includes ESD protection and follow proper handling and storage procedures to prevent ESD damage.
  • The FAN7392N can handle input signal amplitudes up to 5Vpp and frequencies up to 100 MHz. However, the optimal input signal amplitude and frequency range may vary depending on the specific application and desired performance.
