- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FAN7529N
- Part Number FAN7529N
- Manufacturer onsemi
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - FAN7529N
- Released Date Feb 4, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FAN7529N Details
-
Manufacturer Part Number:
FAN7529N
-
Brand Name:
ON Semiconductor
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
DIP-8
-
Manufacturer Package Code:
N08E
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
onsemi
-
YTEOL:
0
-
Additional Feature:
CURRENT MODE ALSO AVAILABLE
FAN7529N Frequently Asked Questions (FAQs)
-
A good PCB layout for the FAN7529N should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the copper plane as large as possible to dissipate heat efficiently.
-
To ensure reliable operation at high temperatures, follow the recommended operating conditions and derating guidelines in the datasheet. Also, consider using a heat sink or thermal pad to reduce the junction temperature. Additionally, ensure that the PCB is designed to handle high temperatures and that the components are rated for the expected operating temperature range.
-
For EMI and EMC compliance, ensure that the PCB layout is designed to minimize radiation and conduction of electromagnetic interference. Use a solid ground plane, keep signal traces short and away from the device, and use shielding or filtering if necessary. Also, follow the recommended layout guidelines for the device's pins and ensure that the device is properly decoupled.
-
To troubleshoot OCP issues, first verify that the OCP threshold is set correctly and that the device is not overheating. Check the input voltage and current levels to ensure they are within the recommended operating range. Also, verify that the OCP pin is properly connected and that the device is not experiencing any electrical overstress.
-
The device's quiescent current (IQ) can impact system power consumption, especially in low-power or battery-powered applications. To minimize the impact of IQ, ensure that the device is properly shut down or put into a low-power state when not in use. Also, consider using a device with a lower IQ or implementing power-saving techniques such as pulse-skipping or frequency reduction.
Trust Checks
Community Provided
System Verified
Community Approved
FAN7529N Overview

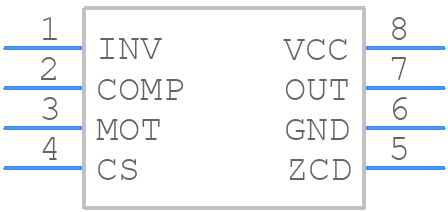

Use the download button to access the FAN7529N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN75,
or try a keyword search, such as Switching Regulator or Controllers
