A good PCB layout for the FAN8831MPX should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a solid ground plane underneath. Keep the input and output capacitors close to the device, and use short, wide traces to minimize inductance and resistance.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that matches the output voltage. The datasheet provides guidelines for capacitor selection, but you may need to consult capacitor manufacturers' datasheets for specific recommendations.
The FAN8831MPX is rated for operation up to 105°C ambient temperature. However, it's essential to consider the device's power dissipation, PCB thermal design, and airflow when operating at high temperatures. Ensure that the device's junction temperature (TJ) remains below 150°C for reliable operation.
The FAN8831MPX has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. For SCP, connect the SCP pin to a capacitor that sets the short-circuit detection time. Consult the datasheet for specific implementation details and component values.
To ensure proper startup, follow this sequence: 1) Apply input voltage (VIN) to the device, 2) Wait for the internal soft-start timer to expire (typically 1-2 ms), and 3) Apply the enable signal (EN) to turn on the device. This sequence helps prevent inrush currents and ensures a stable output voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN8831MPX Overview

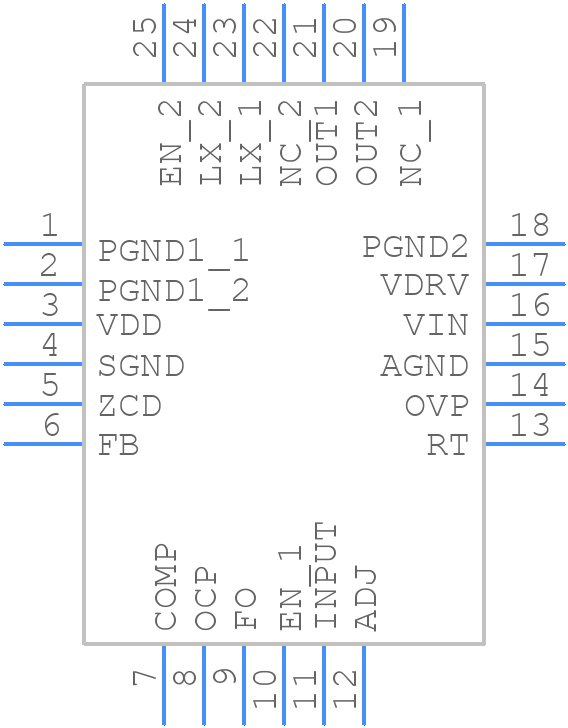

Use the download button to access the FAN8831MPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN88,
or try a keyword search, such as Switching Regulator or Controllers
