FAN9673Q - onsemi

Description: SAG Protection; Programmable Operation Frequency Range: 18 kHz~40 kHz or 55 kHz~75 kHz; Under-Voltage Lockout (UVLO); Programmable PFC Output Voltage; PFC Slave Channel Management Function; TriFault Detect™ Protects Against Feedback Loop Failure; Two Current Limit Functions; Differential Current Sensing; Programmable Soft-Start; Continuous Conduction Mode Control; Three-Channel PFC Control (Maximum); Average Current-Mode Control

Download FAN9673Q Model
Schematic

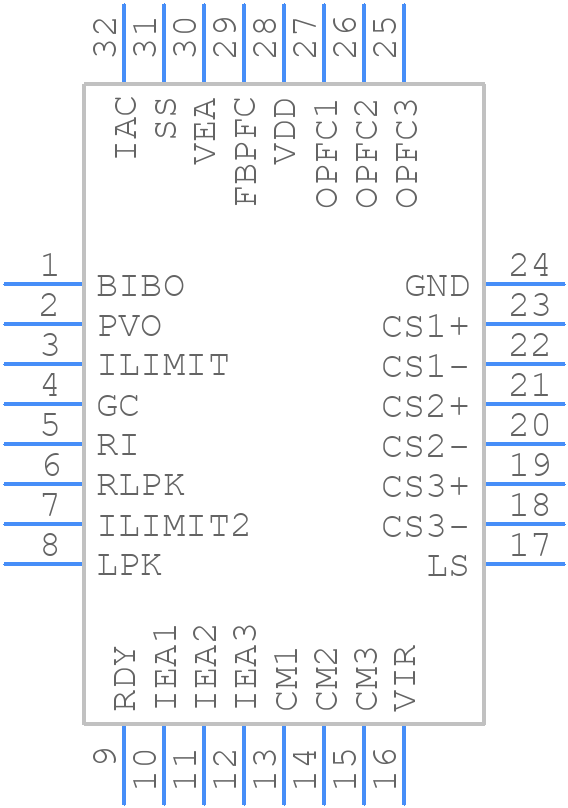

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN9673Q - onsemi PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP−32, 7x7 CASE 561AB−01 ISSUE O
click to zoom
3D Models
FAN9673Q - onsemi  - 3D model - Quad Flat Packages - LQFP−32, 7x7 CASE 561AB−01 ISSUE O
click to zoom

FAN9673Q Details

  • Manufacturer Part Number:

    FAN9673Q

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP-32

  • Package Description:

    LQFP-32

  • Manufacturer Package Code:

    561AB

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    22 V

  • Input Voltage-Min:

    13 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    75 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

FAN9673Q Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN9673Q involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitance value should be chosen based on the output voltage and the desired ripple voltage.
  • The FAN9673Q is rated for an ambient temperature range of -40°C to 125°C. However, the device may not operate within specifications at the extreme temperatures. It is recommended to derate the device's performance at high temperatures.
  • To ensure stability, the FAN9673Q requires a minimum output capacitance of 10uF. The output capacitor should be placed close to the device and the traces should be kept short to minimize parasitic inductance. Additionally, the input voltage should be well-regulated and the device should be operated within its specified input voltage range.
  • The maximum input voltage for the FAN9673Q is 28V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a voltage limiter to ensure the input voltage does not exceed the maximum rating.
