FC1-05-02-T-WT-TR footprint, schematic symbol and 3D model by SAMTEC

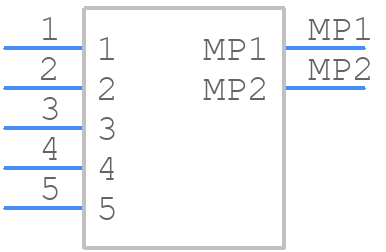

Symbol

click to zoom

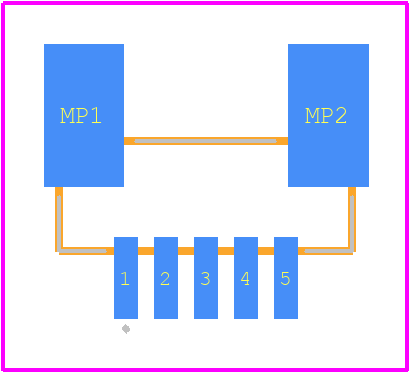

PCB Footprints

FC1-05-02-T-WT-TR - SAMTEC PCB footprint - Other - Other - FC1-05-02-T-WT-TR-4

click to zoom

3D Models

FC1-05-02-T-WT-TR - SAMTEC - 3D model - Other - FC1-05-02-T-WT-TR-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FC1-05-02-T-WT-TR
Part Number FC1-05-02-T-WT-TR
Manufacturer SAMTEC
Pin Count 7
Part Category Connector
Package Category Other
Footprint Name Other - FC1-05-02-T-WT-TR-4
Released Date Jun 27, 2020
Last Modified Date Aug 22, 2025 9:04 AM UTC
Pinout / Pin List Click Here (Member Only)

FC1-05-02-T-WT-TR Details

Manufacturer Part Number:
FC1-05-02-T-WT-TR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
ROHS COMPLIANT
Body Breadth:
0.079 inch
Body Depth:
0.203 inch
Body Length:
0.289 inch
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
SN ON NI
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
DUAL PRONG
Dielectric Withstanding Voltage:
450VAC V
Durability:
25 Cycles
Filter Feature:
NO
Insulation Resistance:
5000000000 Ω
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Contact Pitch:
0.039 inch
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.413 mm
Packing Method:
TR
Rated Current (Signal):
2 A
Reference Standard:
UL
Terminal Pitch:
2.0066 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
5

FC1-05-02-T-WT-TR Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the FC1-05-02-T-WT-TR is designed to withstand vibration and shock according to IEC 61373 Cat. 2. However, it's recommended to consult with Samtec's technical support for specific application requirements.
The operating temperature range for the FC1-05-02-T-WT-TR is -40°C to 105°C, according to the datasheet. However, it's recommended to consult with Samtec's technical support for specific application requirements.
The FC1-05-02-T-WT-TR has a sealed construction and is designed to meet IP67 requirements. However, it's recommended to consult with Samtec's technical support for specific application requirements and to ensure the connector meets the necessary environmental requirements.
While it's possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is 24-30 AWG. Consult with Samtec's technical support for specific application requirements.

Trust Checks

Expert Contribution

System Verified

Community Approved

FC1-05-02-T-WT-TR Overview

Use the download button to access the FC1-05-02-T-WT-TR schematic symbol, PCB footprint, and 3D model.
