FC20-Q73 - Quectel

Description: Wi-Fi And Bt Module With Ultra-Compact Lcc Package

Download FC20-Q73 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FC20-Q73 - Quectel - PCB symbol
click to zoom
PCB Footprints

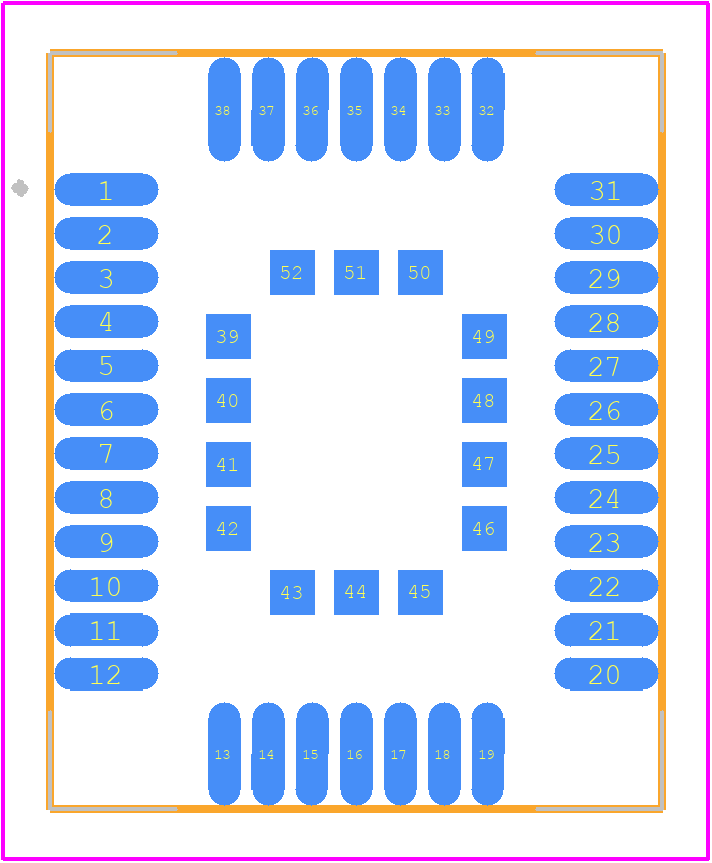

FC20-Q73 - Quectel PCB footprint - Other - Other - FC20-Q73-2
click to zoom
3D Models
FC20-Q73 - Quectel - 3D model - Other - FC20-Q73-2
click to zoom

FC20-Q73 Details

  • Manufacturer Part Number:

    FC20-Q73

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    LCC-52

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Quectel Wireless Solutions Co Ltd

  • Additional Feature:

    SEATED HEIGHT NOM CONSIDERED

  • Data Rate:

    433000 Mbps

  • JESD-30 Code:

    R-XQCC-N52

  • Length:

    16.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC52(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    2.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    13 mm

FC20-Q73 Frequently Asked Questions (FAQs)

  • The maximum power consumption of FC20-Q73 is around 2.5W, but it can vary depending on the operating mode and usage scenario.
  • You can configure the FC20-Q73 for different frequency bands using the AT command set provided by Quectel. You can use commands like AT+BAND to set the frequency band and AT+CFUN to set the operating mode.
  • The maximum data transfer rate of FC20-Q73 is up to 100Mbps for downlink and up to 50Mbps for uplink, depending on the network and operating conditions.
  • No, FC20-Q73 is a 4G LTE module and does not support 5G networks. If you need 5G support, you should consider other modules from Quectel like the RG500Q or RM500Q.
  • You can implement secure communication with FC20-Q73 using SSL/TLS encryption, which is supported by the module. You can also use other security protocols like IPSec and HTTPS.
