FC20-Q93 - Quectel

Description: Bluetooth, WiFi 802.11a/b/g/-c, Bluetooth v5.0 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount

Download FC20-Q93 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FC20-Q93 - Quectel - PCB symbol
click to zoom
PCB Footprints

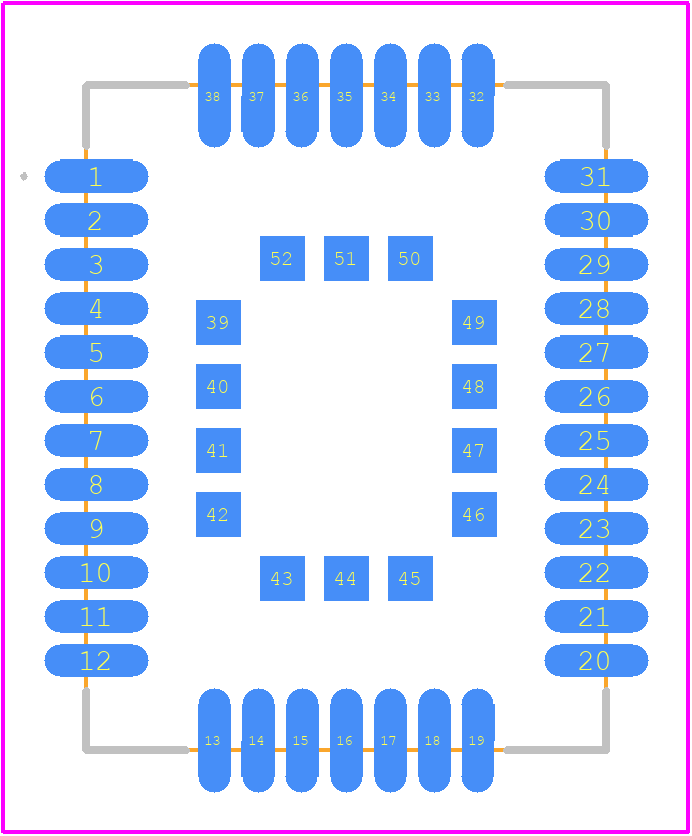

FC20-Q93 - Quectel PCB footprint - Other - Other - FC20-Q93-1
click to zoom
3D Models
FC20-Q93 - Quectel - 3D model - Other - FC20-Q93-1
click to zoom

FC20-Q93 Details

  • Manufacturer Part Number:

    FC20-Q93

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    LCC-52

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Quectel Wireless Solutions Co Ltd

  • Additional Feature:

    SEATED HGT NOMINAL

  • Data Rate:

    433000 Mbps

  • JESD-30 Code:

    R-XQCC-N52

  • Length:

    16.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    2.05 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    13 mm

FC20-Q93 Frequently Asked Questions (FAQs)

  • The maximum power consumption of FC20-Q93 is around 2.5W, but it can vary depending on the operating mode and usage scenario.
  • You can configure the FC20-Q93 for different frequency bands using AT commands. The specific commands and settings will depend on the frequency band and region you are operating in. Refer to the AT command manual for more information.
  • The maximum data transfer rate of FC20-Q93 is up to 100Mbps (downlink) and 50Mbps (uplink) in LTE Cat 4 mode.
  • Yes, FC20-Q93 is designed to operate in a wide temperature range of -40°C to +85°C, making it suitable for use in harsh environments.
  • You can troubleshoot issues with FC20-Q93 using tools such as AT commands, debug logs, and diagnostic software provided by Quectel. You can also refer to the troubleshooting guide in the datasheet or contact Quectel's technical support team for assistance.
