FC8V33030L - Panasonic

Description: MOSFET Nch+Nch MOSFET 2.9x2.8mm Flat lead

Download FC8V33030L Model

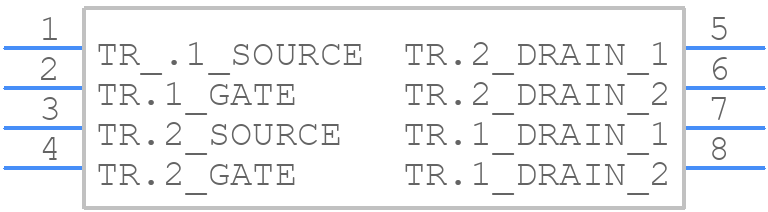

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FC8V33030L - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - WMini8-F1
click to zoom
3D Models
FC8V33030L - Panasonic  - 3D model - SO Transistor Flat Lead - WMini8-F1
click to zoom

FC8V33030L Details

  • Manufacturer Part Number:

    FC8V33030L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, WMINI8-F1, SC-115, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    33 V

  • Drain Current-Max (ID):

    6.5 A

  • Drain-source On Resistance-Max:

    0.035 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1.5 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FC8V33030L Frequently Asked Questions (FAQs)

  • A good PCB layout for the FC8V33030L would involve keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces to reduce parasitic inductance.
  • To ensure the FC8V33030L operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 125°C.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input of the FC8V33030L. This helps to filter out high-frequency noise and ensure stable operation.
  • While the FC8V33030L can operate up to 125°C, it's essential to consider the derating curves and ensure the device operates within its SOA. Additionally, consider the reliability and lifespan of the device at high temperatures.
  • To troubleshoot issues with the FC8V33030L, check the input voltage, output voltage, and output current. Verify the PCB layout and component values meet the recommended specifications. Use an oscilloscope to check for oscillations or noise on the input and output lines.
