The recommended PCB layout for the FDA217STR involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input and output leads to reduce parasitic inductance and capacitance.
To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder to the pads. Avoid applying excessive force or heat, which can damage the device.
The FDA217STR has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device's performance at temperatures above 85°C to ensure reliable operation.
Yes, the FDA217STR is designed for high-reliability applications and meets the requirements of various safety standards, including AEC-Q101 and IEC 60747-5-5. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
To prevent electrostatic discharge (ESD) damage, handle the FDA217STR with ESD-protective equipment, such as wrist straps or mats, and avoid touching the device's pins or leads. Also, ensure the PCB design includes ESD protection components, such as TVS diodes or resistors, to protect the device from ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDA217STR Overview

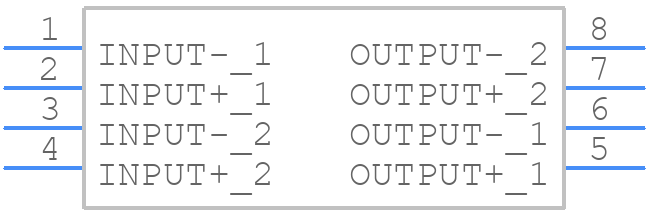

Use the download button to access the FDA217STR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDA21,
or try a keyword search, such as Other Optoelectronics
