FDA803D-EHT - STMicroelectronics

Description: Audio Amplifiers 1 x 45 W class D digital input automotive power amplifier with diagnostics, wide voltage operation range for car audio a

Download FDA803D-EHT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

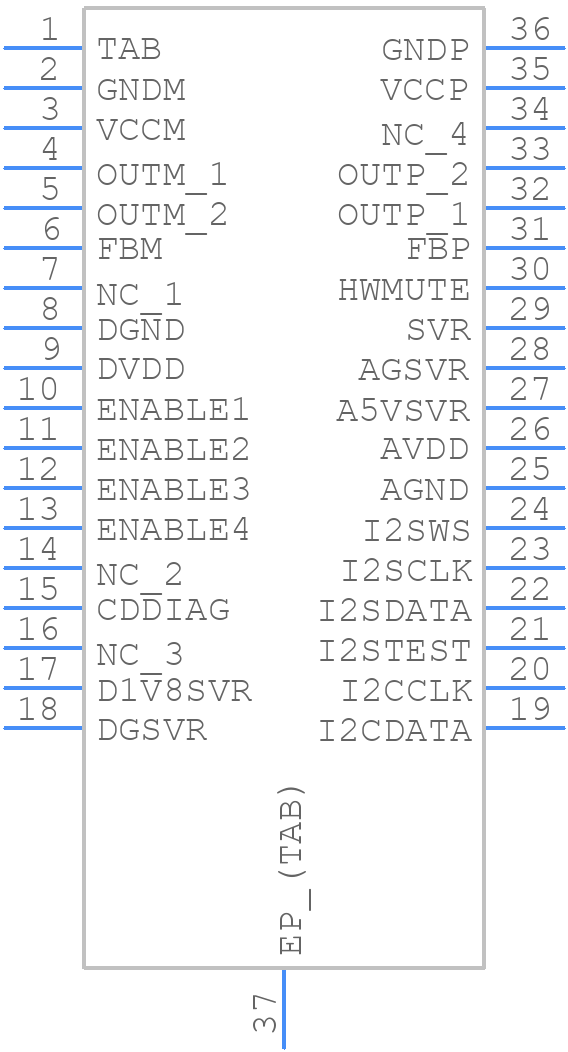

Symbol
FDA803D-EHT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
FDA803D-EHT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36
click to zoom
3D Models
FDA803D-EHT - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36
click to zoom

FDA803D-EHT Details

  • Manufacturer Part Number:

    FDA803D-EHT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Harmonic Distortion:

    0.01%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    80 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

FDA803D-EHT Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, it's recommended to use a common mode filter and to keep the input and output traces as short as possible.
  • To optimize the FDA803D-EHT for low noise performance, it's recommended to use a low noise voltage regulator, decouple the power supply with a 10uF capacitor, and use a common mode filter to reduce electromagnetic interference (EMI). Additionally, it's recommended to keep the analog and digital grounds separate and to use a shielded cable for the input signal.
  • The FDA803D-EHT is rated for operation from -40°C to 125°C, but it's recommended to derate the device for operation above 85°C to ensure reliable operation.
  • To protect the FDA803D-EHT from overvoltage and ESD, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode on the input pins, and to follow proper ESD handling procedures during assembly and testing.
  • The FDA803D-EHT is designed to operate with input signal amplitudes up to 5Vpp and frequencies up to 100 kHz. However, the recommended input signal amplitude and frequency range may vary depending on the specific application and requirements.
