FDA803Q-V0T - STMicroelectronics

Description: 1 Channel class D digital input automotive power amplifier with diagnostics, wide voltage operation range for car audio and telematics

Download FDA803Q-V0T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

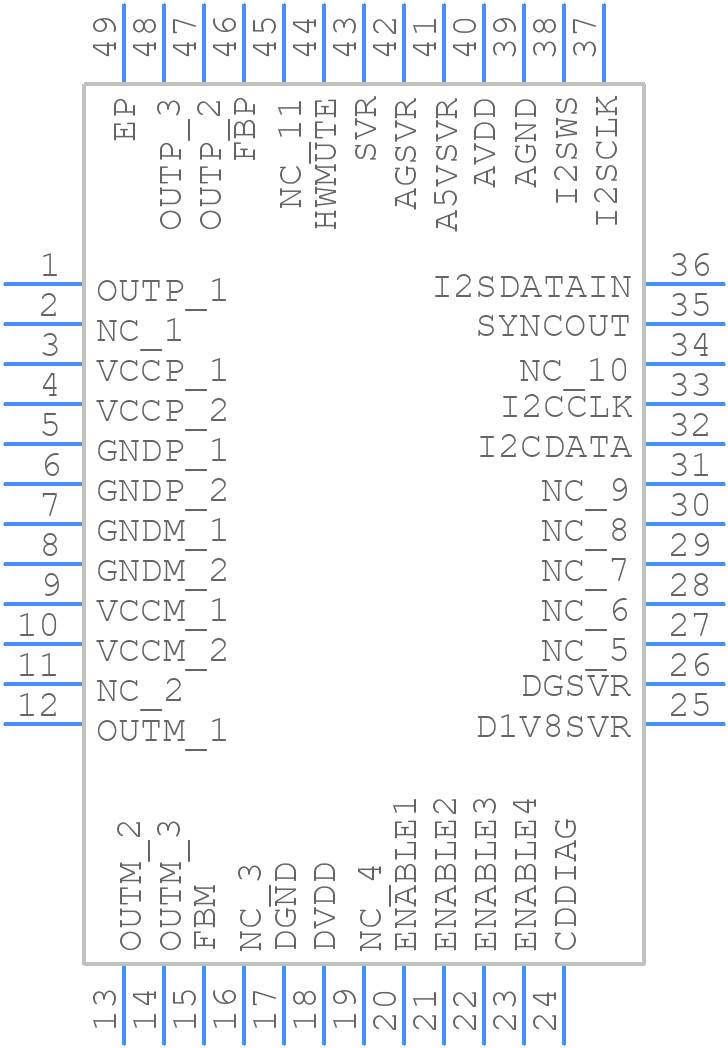

Symbol
FDA803Q-V0T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
FDA803Q-V0T - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN (7x7x1.0 48L )
click to zoom
3D Models
FDA803Q-V0T - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN (7x7x1.0 48L )
click to zoom

FDA803Q-V0T Details

  • Manufacturer Part Number:

    FDA803Q-V0T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

FDA803Q-V0T Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the FDA803Q-V0T in the application note AN5073, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The FDA803Q-V0T requires a specific biasing scheme to operate within its recommended operating conditions. Refer to the application note AN5073, which provides a detailed biasing scheme and layout guidelines to ensure optimal performance and minimize noise.
  • The FDA803Q-V0T requires specific input and output termination schemes to ensure signal integrity and minimize reflections. STMicroelectronics recommends using a 50Ω termination scheme for the input and output pins, as described in the application note AN5073.
  • The FDA803Q-V0T has specific power sequencing requirements to ensure proper operation and prevent damage. The device requires a specific power-up sequence, with the analog supply (VCC) powered up before the digital supply (VDD). Refer to the datasheet and application note AN5073 for detailed power sequencing guidelines.
  • The FDA803Q-V0T is a sensitive device and requires proper ESD protection measures to prevent damage. STMicroelectronics recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins, as well as following proper handling and storage procedures to prevent ESD damage.
