FDA803Q-V0Y - STMicroelectronics

Description: 1 channel class D digital input automotive power amplifier with diagnostics, wide voltage operation range for car audio and telematic

Download FDA803Q-V0Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

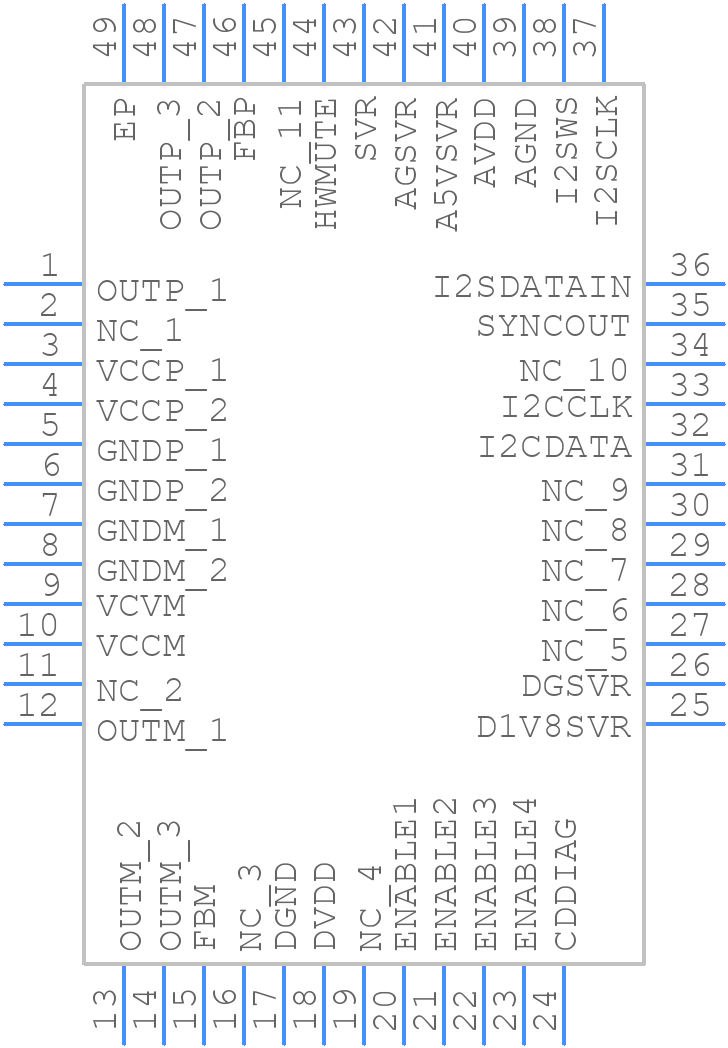

Symbol
FDA803Q-V0Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
FDA803Q-V0Y - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN (7x7x1.0 48L )
click to zoom
3D Models
FDA803Q-V0Y - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN (7x7x1.0 48L )
click to zoom

FDA803Q-V0Y Details

  • Manufacturer Part Number:

    FDA803Q-V0Y

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

FDA803Q-V0Y Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the FDA803Q-V0Y in the application note AN5073, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure EMC with the FDA803Q-V0Y, follow the guidelines in the STMicroelectronics application note AN2866, which provides recommendations for PCB design, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant standards.
  • While the datasheet specifies the recommended operating voltage range, the absolute maximum voltage rating for the input pins is typically 6V, as specified in the STMicroelectronics document 'Voltage and Current Limits' (document number: DM00166193). Exceeding this voltage can damage the device.
  • The power-up sequence for the FDA803Q-V0Y is critical to ensure proper operation. STMicroelectronics recommends powering up the device in the following sequence: VCC, then AVCC, and finally the input signals. This sequence helps prevent latch-up and ensures reliable operation.
  • While the datasheet specifies the recommended operating temperature range, it's essential to note that the device can operate safely within the industrial temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade outside this range.
